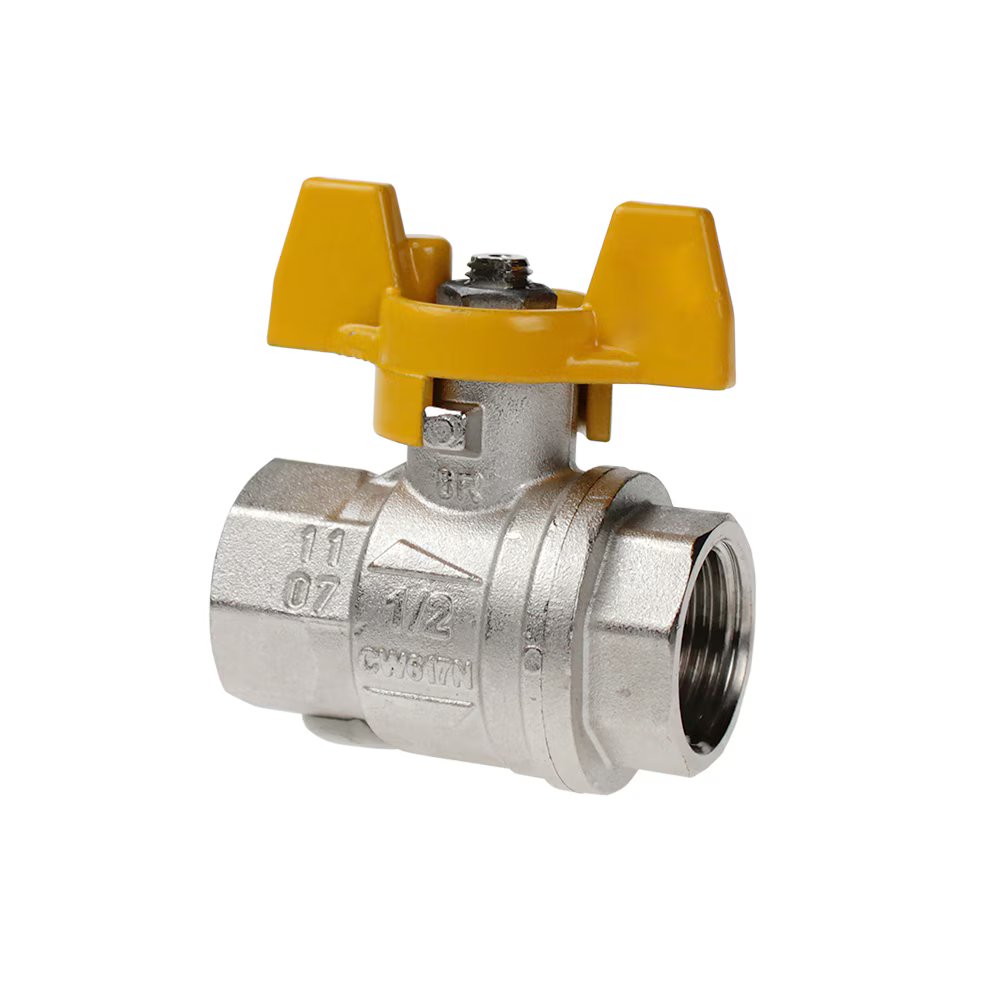

BVGT4-3/4C by Parker | Standard In-Line Ball Valve w/ Butterfly Handle | 3/4" Female BSPP Thread | 31 mm Hex | 54 mm Length | Straight | Nickel-Plated Brass

BVGT4-3/4C by Parker | Standard In-Line Ball Valve w/ Butterfly Handle | 3/4" Female BSPP Thread | 31 mm Hex | 54 mm Length | Straight | Nickel-Plated Brass

Sale price$93.87

by Parker Hannifin
Standard Series:BVGT4-C 2/2 Standard In-Line Ball Valve, Female BSPP Thread, Butterfly Handle
Buy More, Save More!
Quantity Price Each
20–29 $88.24
30–59 $79.79
60+ $70.40
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female BSPP
  • 3/4in Female BSPP
  • Some Ends Match
Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Model: Standard and Lockable Series
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 40 bar up to 2"
    0 to 30 bar up to 2"
    expected BVG4P-LOCK and BVG4-LOCK: 0 to 14 bar
  • Working Temperature: -20°C to +170°C
    excepted BVG3P-LOCK: -10°C to +100°C
Advantages:
  • Long or butterfly handle
  • Full fluid flow
  • A lockable version for safety in use
  • Corrosion resistance thanks to chemical nickel plating
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Locking System: Treated Steel
  • Stem seal: FPM o-rings
  • Seat seals: PTFE
  • Long Lever: Geomet plated steel
  • Compact Series Lever: Technical Polymer
  • Butterfly Lever: Aluminum
  • Locking nut and Locking screw: Zinc plated steel
  • Stem: Nickel-Plated Brass
  • Body: Nickel plated or chromium-plated shot blasted brass
  • Ball: Chromium-plated brass
Part Number Diameter Nominal (DN) C E F G H L M Kg
BVGT4-3/4C 20 mm 3/4" 12 mm 31 mm 39 mm 49 mm 54 mm 50 mm .265 Kg
