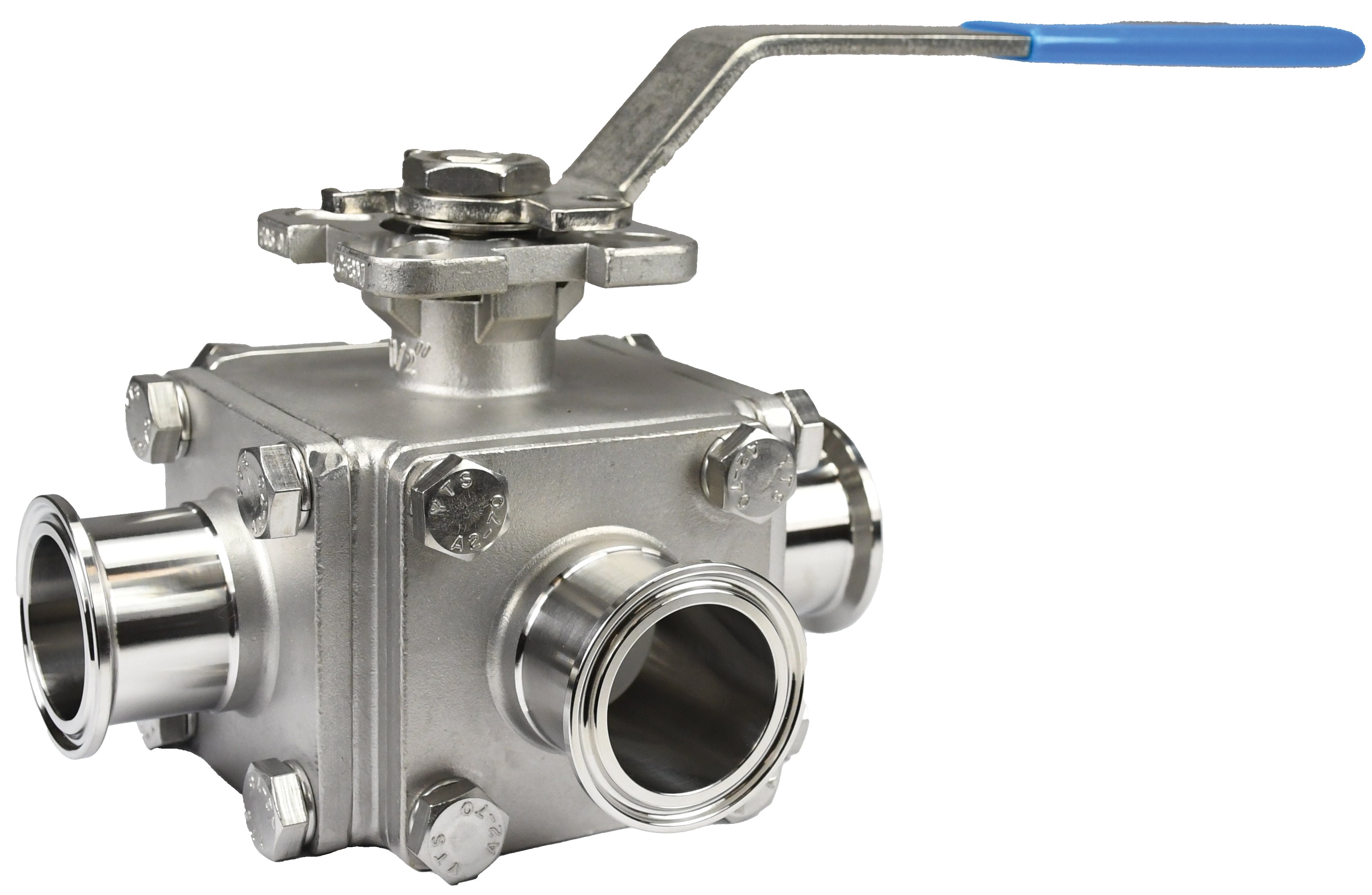

BV3SSLF300C-A Dixon Valve 3" Sanitary Three-Way "L" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: 50% Stainless Steel Reinforced PTFE
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | Dimensions | |||||||||
| A | B | C | D | E | F | G | H | Break Torque |
Pressure Rating | ||
| BV3SSLF100C-A | 1" | 6.0" | 3.0" | 3.8" | 2.3" | 5.4" | 11mm | 42mm | 50mm | 228 in. lbs. | 650 PSI WOG |
| BV3SSLF150C-A | 1-1/2" | 6.9" | 3.4" | 4.5" | 2.9" | 9.3" | 14mm | 50mm | 70mm | 474 in. lbs. | 400 PSI WOG |
| BV3SSLF200C-A | 2" | 7.5" | 3.7" | 4.9" | 3.2" | 9.3" | 14mm | 50mm | 70mm | 736 in. lbs. | 400 PSI WOG |
| BV3SSLF300C-A | 3" | 9.6" | 5.1" | 6.5" | 4.9" | 18.3" | 22mm | 102mm | 125mm | 2496 in. lbs. | 400 PSI WOG |
