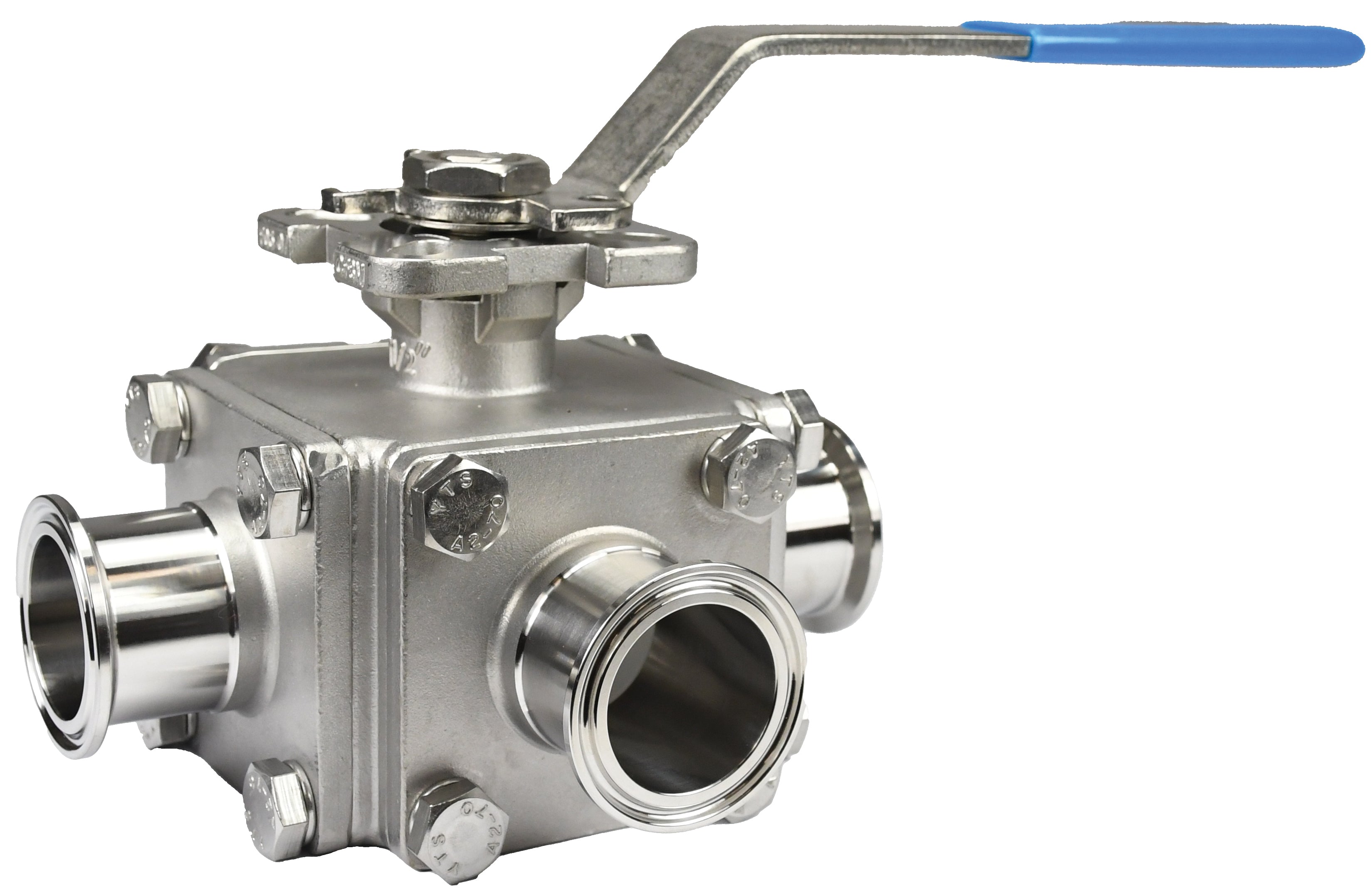

BV3SGTF250C-A Dixon Valve 2-1/2" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve - Seat: 15% Glass Reinforced RTFE
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | Dimensions | |||||||||
| A | B | C | D | E | F | G | H | Break Torque |
Pressure Rating |
||
| BV3SGTF050C-A | 1/2" | 4.6" | 2.3" | 3.3" | 1.7" | 4.9" | 9mm | 36mm | 42mm | 48 in. lbs. | 1000 PSI WOG |
| BV3SGTF075C-A | 3/4" | 5.0" | 2.5" | 3.5" | 1.9" | 4.9" | 9mm | 36mm | 42mm | 84 in. lbs. | 1000 PSI WOG |
| BV3SGTF100C-A | 1" | 6.0" | 3.0" | 3.8" | 2.3" | 5.4" | 11mm | 42mm | 50mm | 188 in. lbs. | 650 PSI WOG |
| BV3SGTF150C-A | 1-1/2" | 6.9" | 3.4" | 4.5" | 2.9" | 9.3" | 14mm | 50mm | 70mm | 327 in. lbs. | 400 PSI WOG |
| BV3SGTF200C-A | 2" | 7.5" | 3.7" | 4.9" | 3.2" | 9.3" | 14mm | 50mm | 70mm | 608 in. lbs. | 400 PSI WOG |
| BV3SGTF250C-A | 2-1/2" | 8.4" | 4.5" | 5.3" | 3.9" | 18.0" | 17mm | 70mm | 102mm | 1225 in. lbs. | 400 PSI WOG |
| BV3SGTF300C-A | 3" | 9.6" | 5.1" | 6.5" | 4.9" | 18.3" | 22mm | 102mm | 125mm | 1540 in. lbs. | 400 PSI WOG |
