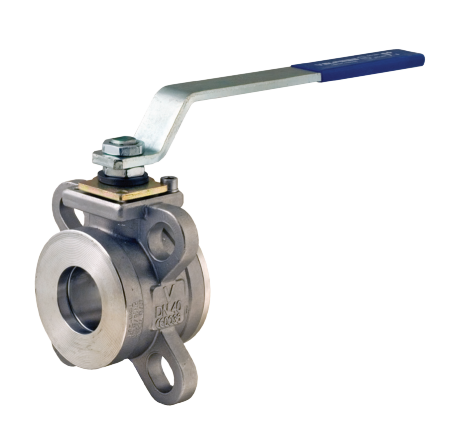

BV2IC-200WW-A Dixon Valve 2" Sanitary Wafer Ball Valve - 316 Stainless Steel - Seat: PTFE
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | A | B | C | D | E | F | G | H | I | J | K |
| BV2IC-100WW-A | 1" | ANSI 150 | 1.81" | 6.85" | 3.58" | 2.81" | 0.90" | 0.41" | M12 | 0.31" | F04 | 4xM5 |
| BV2IC-125WW-A | 1-1/4" | ANSI 150 | 2.12" | 6.85" | 3.74" | 2.95" | 0.90" | 0.41" | M12 | 0.31" | F04 | 4xM5 |
| BV2IC-150WW-A | 1-1/2" | ANSI 150 | 2.50" | 9.84" | 4.33" | 3.34" | 1.10" | 0.59" | M16 | 0.39" | F05 | 4xM6 |
| BV2IC-200WW-A | 2" | ANSI 150 | 3.23" | 9.84" | 4.68" | 3.68" | 1.10" | 0.59" | M16 | 0.39" | F05 | 4xM6 |
| BV2IC-250WW-A | 2-1/2" | ANSI 150 | 4.05" | 12.63" | 5.70" | 4.78" | 1.31" | 0.70" | M20 | 0.55" | F07 | 4xM8 |
| BV2IC-300WW-A | 3" | ANSI 150 | 4.80" | 12.63" | 6.06" | 5.15" | 1.31" | 0.70" | M20 | 0.55" | F07 | 4xM8 |
| BV2IC-400WW-A | 4" | ANSI 150 | 5.60" | 12.53" | 6.57" | 5.67" | 1.31" | 0.70" | M20 | 0.55" | F10 | 4xM8 |
