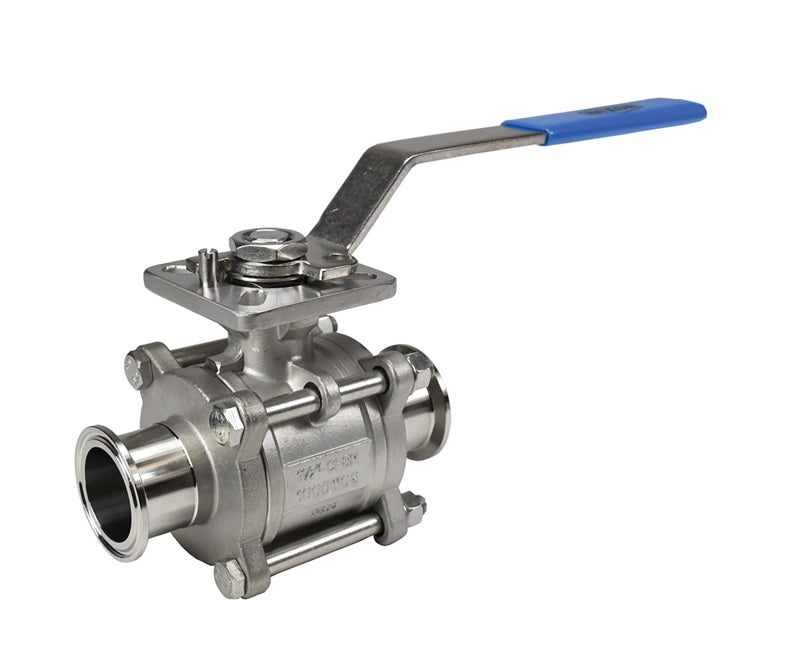

BV2CC-150CC-A Dixon Valve 1-1/2" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: 25% Carbon Reinforced PTFE

BV2CC-150CC-A Dixon Valve 1-1/2" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: 25% Carbon Reinforced PTFE

Sale price$452.46

Dixon Sanitary Valves
Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle

Seat: 25% Carbon Reinforced PTFE
Buy More, Save More!
Quantity Price Each
5–14 $425.31
15–29 $384.59
30+ $339.35
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Stainless Steel
Seal Material(s):
  • Carbon Reinforced PTFE
Features:
  • Balanced encapsulated construction minimizes cold flow.
  • Live-loaded stem packing.
  • Precision stainless steel balls reduce torque and friction losses while extending seat life.
  • Lockable handle can prevent accidental actuation.
  • Standard internal entry blow out proof stem design.
  • Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow.
  • Compact design for areas with tight space restrictions.
Construction:
  • 25% carbon reinforced tetrafluoroethylene seal: Specified for higher temperature pressure applications. Ideal for steam and thermal fluid applications. Higher cycle life than RTFE.
  • ID polish is Ra 32 minimum.
  • Fully encapsulated construction produces bubble tight seal.
  • Integral ISO 5211 mounting pad.
  • Material: CF8M Stainless Steel.
Specifications:
  • Pressure Rating: 1000 PSI WOG.
Part Number Size Dimensions
A B C D E F
(mm)		 G
(mm)		 H
(mm)		 Break Torque
in. lbs.
BV2CC-050CC-A 1/2" 4.3" 4.9" 1.5" 2.0" 3.1" 36mm 42mm 9mm 37 in. lbs.
BV2CC-075CC-A 3/4" 4.7" 4.9" 1.8" 2.2" 3.4" 36mm 42mm 9mm 57 in. lbs.
BV2CC-100CC-A 1" 4.9" 5.4" 2.1" 2.4" 3.6" 42mm 50mm 11mm 127 in. lbs.
BV2CC-150CC-A 1-1/2" 5.6" 9.3" 2.7" 3.2" 4.4" 50mm 70mm 14mm 287 in. lbs.
BV2CC-200CC-A 2" 6.4" 9.3" 3.1" 3.8" 4.7" 50mm 70mm 14mm 309 in. lbs.
BV2CC-250CC-A 2-1/2" 7.8" 18.0" 3.8" 4.9" 5.2" 70mm 102mm 17mm 1089 in. lbs.
BV2CC-300CC-A 3" 9.0" 18.3" 4.2" 5.4" 5.7" 70mm 102mm 17mm 1997 in. lbs.
BV2CC-400CC-A 4" 9.6" 18.3" 5.3" 8.7" 6.9" 102mm 125mm 22mm 2452 in. lbs.
