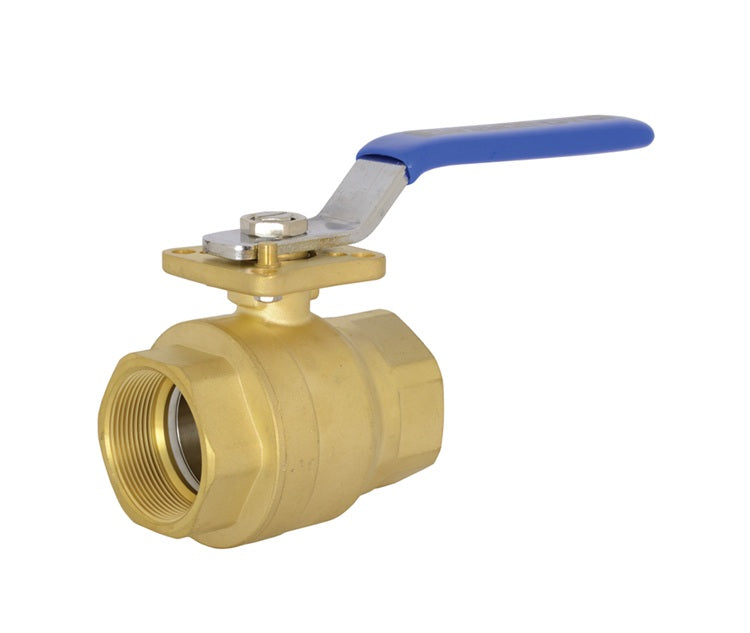

BV2BV-20011-A Dixon Valve 2" Two-Piece Industrial Brass Ball Valve - Female NPT x Female NPT - PTFE Seat - Standard Handle
Buy more, save moreDiscounts applied in cart/checkout.
What are the Features?
- Full port
- Female NPT ends
- Blow-out proof stem
- ISO 5211 mounting pad
How is it Constructed?
- PTFE seats with O-ring backing
- Double O-ring stem packing
- ISO 5211 mounting pad
What are the Specifications?
- Maximum Operating Pressure: 600 PSI WOG
- Maximum Temperature: 320°F (160°C)
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | Body | Seat | Handle | Dimensions | ||||||
| A | B | C | D | E | F | Break Torque (in. lbs.) | |||||
| BV2BV-05011-A | 1/2" | Brass | PTFE | Standard | 4.40" | 1.51" | 2.16" | F04 | - | 9mm | 86 in. lbs. |
| BV2BV-07511-A | 3/4" | Brass | PTFE | Standard | 4.40" | 1.63" | 2.80" | F04 | F05 | 11mm | 149 in. lbs. |
| BV2BV-10011-A | 1" | Brass | PTFE | Standard | 5.40" | 1.76" | 3.23" | F04 | F05 | 11mm | 193 in. lbs. |
| BV2BV-12511-A | 1-1/4" | Brass | PTFE | Standard | 7.30" | 2.13" | 3.58" | F05 | F07 | 11mm | 290 in. lbs. |
| BV2BV-15011-A | 1-1/2" | Brass | PTFE | Standard | 7.80" | 2.32" | 4.06" | F05 | F07 | 11mm | 470 in. lbs. |
| BV2BV-20011-A | 2" | Brass | PTFE | Standard | 7.80" | 2.65" | 4.76" | F05 | F07 | 14mm | 634 in. lbs. |
| BV2BV-25011-A | 2-1/2" | Brass | PTFE | Standard | 7.10" | 3.93" | 6.10" | - | F07 | 17mm | 725 in. lbs. |
| BV2BV-30011-A | 3" | Brass | PTFE | Standard | 7.10" | 4.32" | 6.90" | - | F07 | 17mm | 800 in. lbs. |
| BV2BV-40011-A | 4" | Brass | PTFE | Standard | 7.10" | 4.93" | 8.10" | - | F07 | 17mm | 1062 in. lbs. |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
