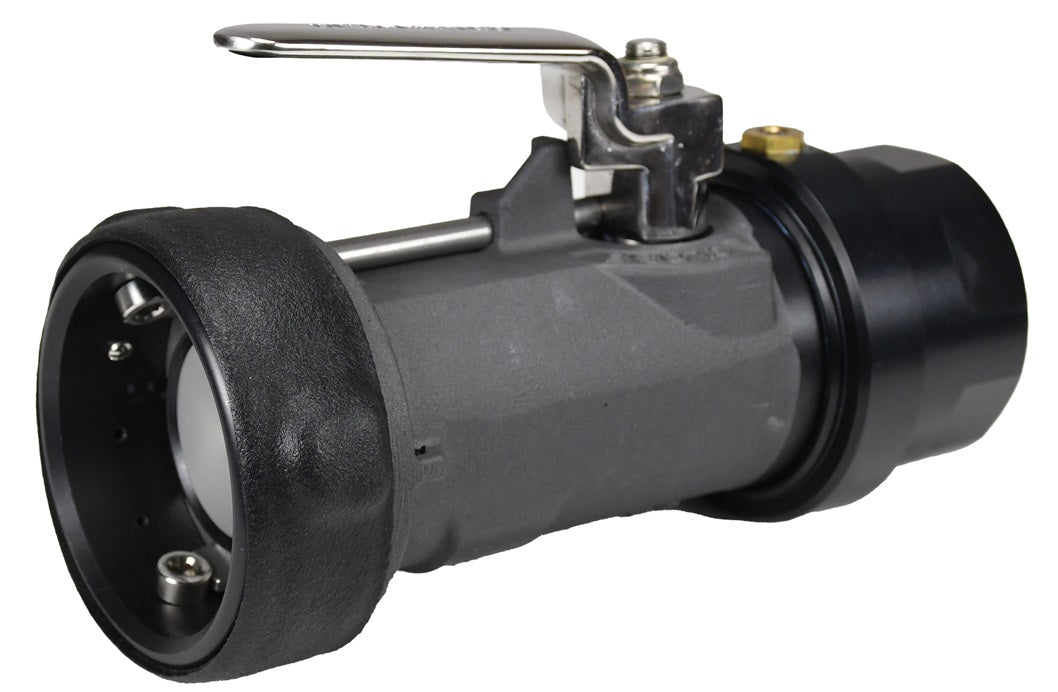

BSS62K1-200 by Dixon Valve | Dry Disconnect | Bayonet Style | 2" Size | Keyed Swivel Coupler x Female NPT (ZERK Fitting) | FKM Seal | Anodized Hard Coat Aluminum

BSS62K1-200 by Dixon Valve | Dry Disconnect | Bayonet Style | 2" Size | Keyed Swivel Coupler x Female NPT (ZERK Fitting) | FKM Seal | Anodized Hard Coat Aluminum

Sale price$763.42
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery.
  • The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.
Compatibility & Interchange Data:
  • Interchangeable with the Emco Wheaton™ Dry Break™.
Construction:
  • Swivels have a standard ZERK fitting.
  • Material: Anodized Hard Coat Aluminum
Specifications:
  • Canadian registration number CRN# OH14055 all provinces.
  • Maximum operating pressure: 85 PSI at 70°F (21°C).
Part Number Size Seal Material
BSS61K1-200 2" Nitrile Rubber
BSS62K1-200 2" FKM

Additional Product Data:

Shape:

Straight

Material(s):
  • Aluminum
Seal Material(s):
  • Viton/FKM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
