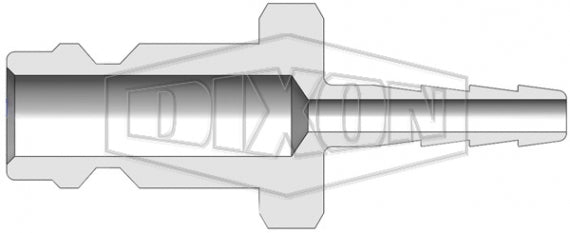

BR1S2.83-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | Hose Barb | 9mm Hose ID x 1/8" 21-Series Interchange | Plug | Brass
BR1S2.83-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | Hose Barb | 9mm Hose ID x 1/8" 21-Series Interchange | Plug | Brass

BR1S2.83-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | Hose Barb | 9mm Hose ID x 1/8" 21-Series Interchange | Plug | Brass

Minimum Order Quantity: 5 Units

Sale price$4.38

Dixon Valve & Coupling
Pneumatic Coupling: BR-Series 21-Series Interchange Plug (Hose Barb)
Buy More, Save More!
Quantity Price Each
20–39 $4.12
40–79 $3.72
80+ $3.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • BR Series
Shape:

Straight

Ends Configuration:
  • 1/8in Male BR-Series QD Interchange
  • 9mm Hose Barb
Compatibility & Interchange:
  • Rectus 21KA, Tomco Series SC, CEJN Series 223
Construction:
  • Machined components are manufactured using solid brass bar stock.
  • Machined components are plated with chrome-over-nickel plating.
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
BR-Series | 21-Series Interchange Plug (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
BR1S1.25-B-E-7 Plug/Male 1/8" 4mm Brass 1.26"
(32.0mm)		 0.35"
(8.9mm)		 9/16" 300 PSI 7000 PSI
BR1S1.86-B-E-7 Plug/Male 1/8" 6mm Brass 1.26"
(32.0mm)		 0.35"
(8.9mm)		 9/16" 300 PSI 7000 PSI
BR1S2.83-B-E-7 Plug/Male 1/8" 9mm Brass 1.26"
(32.0mm)		 0.35"
(8.9mm)		 9/16" 300 PSI 7000 PSI
BR-Series | 21-Series Interchange Coupler (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
1BRS1.25-B-7 Socket/Female 1/8" 4mm Brass 1.26"
(32.0mm)		 0.35"
(8.9mm)		 9/16" 300 PSI 7000 PSI
1BRS1.86-B-7 Socket/Female 1/8" 6mm Brass 1.26"
(32.0mm)		 0.35"
(8.9mm)		 9/16" 300 PSI 7000 PSI
1BRS2.83-B-7 Socket/Female 1/8" 9mm Brass 1.26"
(32.0mm)		 0.35"
(8.9mm)		 9/16" 300 PSI 7000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
