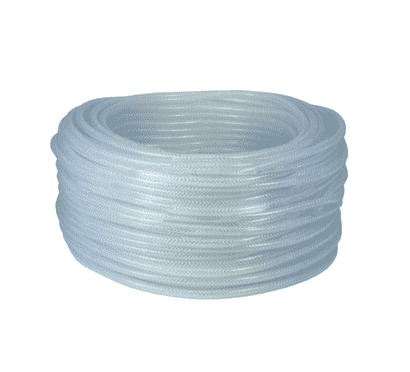

BR0306 Dixon Valve Clear PVC Braided Tubing - Domestic - 3/16" ID, 3/8" OD - 300ft Length
Dixon

BR0306 Dixon Valve Clear PVC Braided Tubing - Domestic - 3/16" ID, 3/8" OD - 300ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • High grade tensile strength polyester yarn reinforcement.
  • Tubing sold only in lengths shown below.
  • Temperature range: 27 deg. F to 150 deg. F.
  • Shipped in coils.
Part Number ID OD Working Pressure @ 72 deg. F. Length Min/Max Temp. Weight (Lbs.)
BR0306 3/16" 3/8" 250 (17.01 bar) 300ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 14.9000
BR0446 1/4" 7/16" 250 (17.01 bar) 300ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 16.3800
BR0609 3/8" 5/8" 225 (15.31 bar) 300ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 31.3000
BR0812 1/2" 3/4" 200 (13.61 bar) 300ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 34.8400
BR1014 5/8" 7/8" 200 (13.61 bar) 300ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 54.6500
BR1218 3/4" 1-1/16" 30 (2.04 bar) 300ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 61.3500
BR1621 1" 1-5/16" 125 (8.50 bar) 200ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 74.2000
BR2027 1-1/4" 1-11/16" 100 (6.80 bar) 100ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 64.5000
BR2431 1-1/2" 1-15/16" 100 (6.80 bar) 100ft 27 deg. F / 150 deg. F (-2.78 deg. C / 65.56 deg. C) 62.2000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
