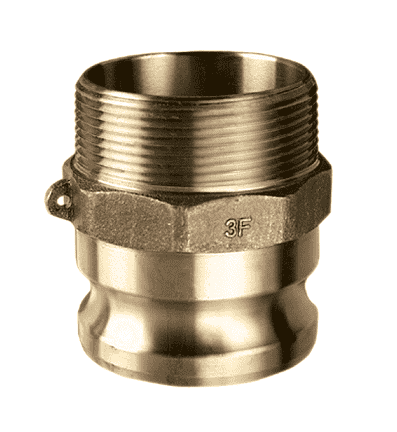

BR-F300 by Kuriyama | Quick-Acting Coupling | Part F | 3" Male Adapter x 3" Male NPT | Brass

BR-F300 by Kuriyama | Quick-Acting Coupling | Part F | 3" Male Adapter x 3" Male NPT | Brass

Sale price$98.49

Kuriyama Couplings™ - Quick-Acting Couplings - Part F - Male Adapter x Male NPT - Brass

Buy More, Save More!
Quantity Price Each
5–19 $92.58
20–59 $83.72
60+ $73.87
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type F

Ends Configuration:
  • 3in Male Cam & Groove
  • 3in Male NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Brass alloy is specially designed for high tensile strength and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM B584 Grade C85700 brass alloy.
  • Forged brass handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
BR-F050 1/2" x 1/2" 0.22 lbs
BR-F075 3/4" x 3/4" 0.33 lbs.
BR-F100 1" x 1" 0.53 lbs.
BR-F125 1-1/4" x 1-1/4" 0.66 lbs.
BR-F150 1-1/2" x 1-1/2" 0.88 lbs.
BR-F200 2" x 2" 1.08 lbs.
BR-F250 2-1/2" x 2-1/2" 1.85 lbs.
BR-F300 3" x 3" 2.42 lbs.
BR-F400 4" x 4" 3.74 lbs.
BR-F500 5" x 5" 4.63 lbs.
BR-F600 6" x 6" 9.03 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
