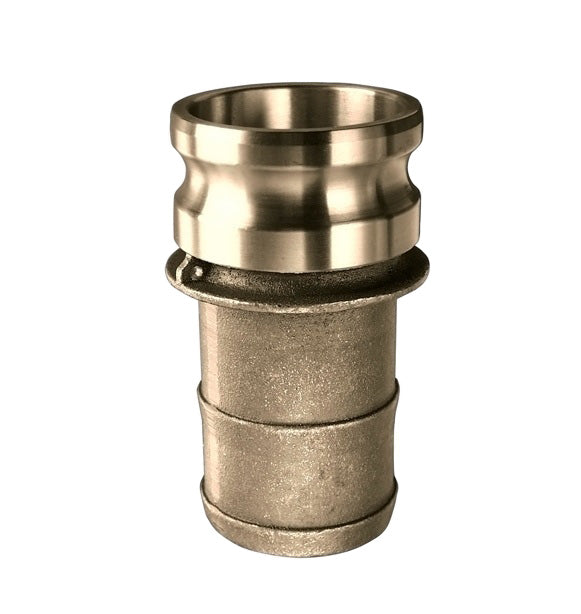

BR-E600 by Kuriyama | BR-E Series | Part E | Cam & Groove Fitting | 6" Adapter x 6" Hose Barb | Brass
Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | BR-E Series | Part E | Adapter x Hose Barb | Brass
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $392.06 |
| 15–29 | $354.52 |
| 30+ | $312.81 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Highly resistant to damage and corrosion.
- Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Tri-Couple™ design available in 1-1/2", 2", 3", 4" sizes.
- Brass alloy specially designed for high tensile strength, impact resistance, and rigidity.
What are the Materials?
- ASTM brass alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|
| BR-E050 | 1/2" | 250 PSI | B584 C85700 | 0.24 lbs |
| BR-E075 | 3/4" | 250 PSI | B584 C85700 | 0.36 lbs |
| BR-E100 | 1" | 250 PSI | B584 C85700 | 0.59 lbs |
| BR-E125 | 1-1/4" | 250 PSI | B584 C85700 | 0.75 lbs |
| BR-E150* | 1-1/2" | 250 PSI | B584 C85700 | 1.01 lbs |
| BR-E200* | 2" | 250 PSI | B584 C85700 | 1.54 lbs |
| BR-E250 | 2-1/2" | 150 PSI | B584 C85700 | 2.11 lbs |
| BR-E300* | 3" | 150 PSI | B584 C85700 | 3.08 lbs |
| BR-E400* | 4" | 150 PSI | B584 C85700 | 4.30 lbs |
| BR-E500 | 5" | 75 PSI | B584 C85700 | 7.60 lbs |
| BR-E600 | 6" | 75 PSI | B584 C85700 | 12.33 lbs |
* Designates Tri-Couple fitting
Product Data:
Series:
MAWP:
75
Shape:
Straight
Cam & Groove Type:
Type E
Ends Configuration:
Material(s):
