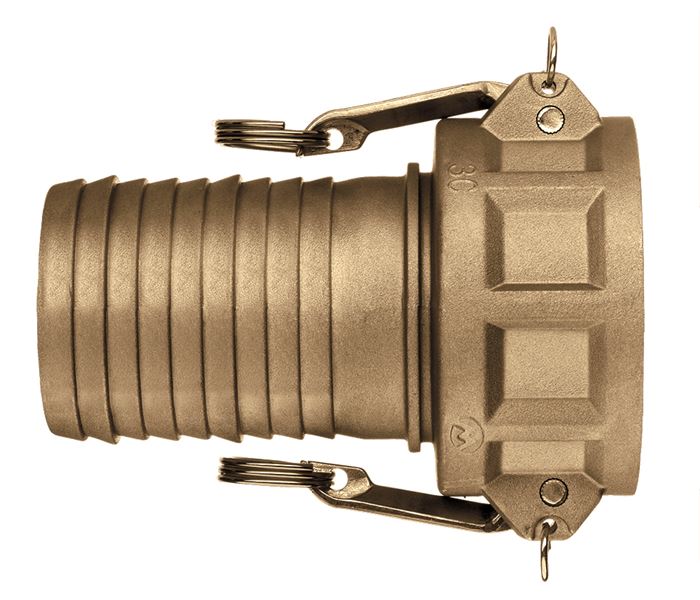

BR-C150 by Kuriyama | BR-C Series | Part C | Cam & Groove Fitting | Tri-Couple | 1-1/2" Coupler x 1-1/2" Hose Barb | Brass

BR-C150 by Kuriyama | BR-C Series | Part C | Cam & Groove Fitting | Tri-Couple | 1-1/2" Coupler x 1-1/2" Hose Barb | Brass

Sale price$53.85

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | BR-C Series | Part C | Coupler x Hose Barb | Brass

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Buy More, Save More!
Quantity Price Each
10–39 $50.62
40–79 $45.77
80+ $40.39
Discounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Highly resistant to damage and corrosion.
  • Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Tri-Couple™ design available in 1-1/2", 2", 3", 4" sizes.
  • Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM brass alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • 304 stainless steel handle pins and pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
BR-C050 1/2" 250 PSI B584 C85700 0.35 lbs
BR-C075 3/4" 250 PSI B584 C85700 0.53 lbs
BR-A100 1" 250 PSI B584 C85700 0.81 lbs
BR-C125 1-1/4" 250 PSI B584 C85700 1.23 lbs
BR-C150* 1-1/2" 250 PSI B584 C85700 1.32 lbs
BR-C200* 2" 250 PSI B584 C85700 1.72 lbs
BR-C250 2-1/2" 150 PSI B584 C85700 2.42 lbs
BR-C300* 3" 150 PSI B584 C85700 3.74 lbs
BR-C400* 4" 150 PSI B584 C85700 5.51 lbs
BR-C500 5" 75 PSI B584 C85700 7.27 lbs
BR-C600 6" 75 PSI B584 C85700 13.77 lbs

* Designates Tri-Couple fitting.

Product Data:

Series:
  • BR-C Series
MAWP:

250

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
