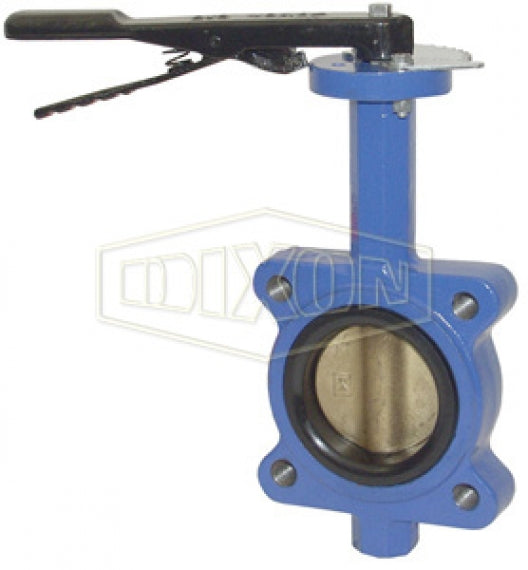

BFVL600E by Dixon Valve | Butterfly Valve | Threaded Lug Style | 6" 150# Flange | EPDM Liner | Ductile Iron

BFVL600E by Dixon Valve | Butterfly Valve | Threaded Lug Style | 6" 150# Flange | EPDM Liner | Ductile Iron

Sale price$568.85

Dixon Valve & Coupling
Ductile Iron Butterfly Valve | Threaded Lug Style

For use between two 150 lb. flanges.
Buy More, Save More!
Quantity Price Each
5–14 $534.72
15–29 $483.52
30+ $426.64
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 6in 150# Flange
  • 6in 150# Flange
  • Some Ends Match
Material(s):
  • Ductile Iron
Features:
  • 10 position trigger grip handle.
Materials:
  • Ductile iron body, ASTM A536.
  • Aluminum bronze disc, ASTM B148, ALY.954.
  • PTFE bushing.
  • Stainless steel top and bottom stems.
Specifications:
  • Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
  • Not Recommended For Steam Service.
Part Number
Valve with
Nitrile Rubber Liner		 Part Number
Valve with
EPDM Liner		 Size
BFVL200 BFVL200E 2"
BFVL300 BFVL300E 3"
BFVL400 BFVL400E 4"
BFVL600 BFVL600E 6"
