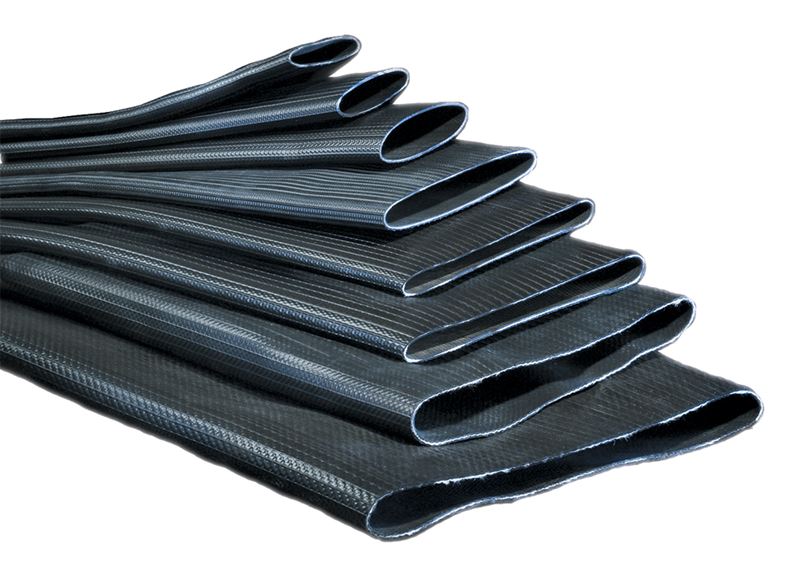

BD400X660 OROFLEX® BANDAMA by Kuriyama | BD Series | Heavy Duty Rubber Irrigation Layflat Hose | PVC/Nitrile | 4" Size | 4.067" Hose ID | Black | 660ft Length

BD400X660 OROFLEX® BANDAMA by Kuriyama | BD Series | Heavy Duty Rubber Irrigation Layflat Hose | PVC/Nitrile | 4" Size | 4.067" Hose ID | Black | 660ft Length

Sale price$6,344.77

Kuriyama
OROFLEX® BANDAMA | BD Series | Heavy Duty Rubber Irrigation Layflat Hose

Handles heavy-duty dredge discharge, slurry and sludge pumping, liquid manure, and irrigation applications requiring high flexibility and abrasion resistance.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 660 Foot

Buy More, Save More!
Quantity Price Each
3–5 $5,964.08
6+ $5,710.29
Discounts applied in cart/checkout.

Product Data:

Brand:
  • OROFLEX BANDAMA
Series:
  • BD Series
Color(s):
  • Black

SPECIFICATIONS

Applications: Flexible pipeline
Heavy duty dredge discharge
High abrasion resistant applications
Irrigation supply lines
Slurry, sludge, liquid manure pumping
Traveling irrigators
Construction: Black PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement
Service Temperature Range: -20°F (-29°C) to +176°F (+80°C)
Other Features:
  • Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses.
  • Superior Snaking Resistance - Specially designed to virtually eliminate instances of hose snaking, making the hose ideal for use on traveling irrigators.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to kinking, stretching and twisting.
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure
(PSI)		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
BD400X660 4" 101.6mm 4.067" 103.3mm 0.130" 200 PSI 505 PSI 22,046 lbs
BD450X660 4-1/2" 114.3mm 4.626" 117.5mm 0.130" 175 PSI 435 PSI 25,353 lbs
