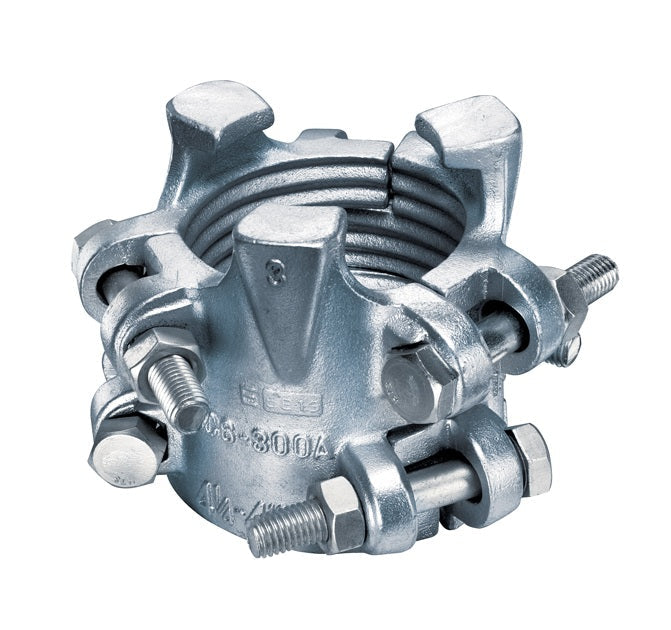

BC6-300A by Kuriyama | BC6 Series | 6-Bolt Interlocking Hose Clamp | 3" Hose ID | 4-1/4" to 4-13/16" Size Range | Plated Ductile Iron

BC6-300A by Kuriyama | BC6 Series | 6-Bolt Interlocking Hose Clamp | 3" Hose ID | 4-1/4" to 4-13/16" Size Range | Plated Ductile Iron

Sale price$109.73

Kuriyama of America Inc.
BC6 Series | 6-Bolt Interlocking Hose Clamp | Plated Ductile Iron

Designed for use with ground joint couplings.
Buy More, Save More!
Quantity Price Each
5–19 $103.15
20–59 $93.27
60+ $82.30
Discounts applied in cart/checkout.

What are the Features?

  • Designed for use with ground joint couplings.
  • Clamps are manufactured with a lip, which connects with the interlocking collar design found on the ground joint hose shank couplings.

What are the Materials?

  • Ductile iron plated.
  • ASTM A536, Grade 65/45/12.

What are the Specifications?

  • Maximum Service Temperature: +450°F (+232°C)
Part Number Hose ID
Size
(in)		 Clamp Size
Range
(in)		 Weight
Each
(lbs) 		Maximum
Torque
(ft lbs)
BC6-300A 3" 4-1/4" - 4-13/16" 12.32 lbs 150 ft lbs
BC6-400A 4" 4-7/8" - 5-5/16" 20.30 lbs 200 ft lbs
BC6-400B 4" 5-1/8" - 6-3/16" 21.45 lbs 200 ft lbs

Product Data:

Series:
  • BC6 Series
Material(s):
  • Plated Ductile Iron
Specifications and Approvals:
  • ASTM A536 Grade 65/45/12

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
