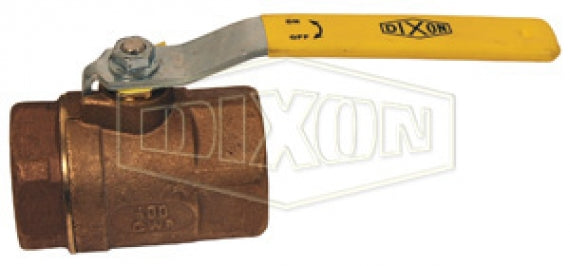

BBV75ST by Dixon Valve | 250 Lb. Steam Ball Valve | Standard Port | 3/4" Female NPT x 3/4" Female NPT | Bronze

BBV75ST by Dixon Valve | 250 Lb. Steam Ball Valve | Standard Port | 3/4" Female NPT x 3/4" Female NPT | Bronze

Sale price$153.09

Dixon Valve & Coupling
250 Lb. Steam Ball Valve | Bronze

Recommended for use with fluids with widely varying temperatures and/or thermal expansion rates.
Buy More, Save More!
Quantity Price Each
5–19 $143.90
20–59 $130.13
60+ $114.82
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female NPT
  • 3/4in Female NPT
  • Some Ends Match
Material(s):
  • Bronze
Features:
  • Blow-out proof stem design.
  • Multi-fill RPTFE seats.
  • Multi-fill stuffing box ring.
  • High temperature MTFE stem packing.
  • Adjustable packing gland.
Materials:
  • Body: Bronze.
  • 316 stainless steel ball and stem.
Specifications:
  • Maximum temperature: 450°F (232°C)
  • Pressure rating: 600 PSI; 250 PSI saturated steam.
  • Vacuum service to 29 inches Hg.
Part Number Female NPT x Female NPT Port
BBV50ST 1/2" Full
BBV75ST 3/4" Standard
BBV100ST 1" Standard
BBV200ST 2" Standard

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
