BBV200LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Bronze

BBV200LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Bronze

Sale price$276.76

Dixon Valve & Coupling

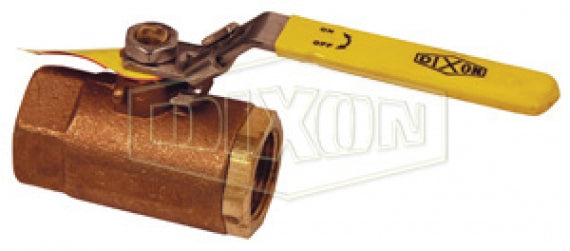

Safety Vented Ball Valve | Bronze

For air service only.
Buy More, Save More!
Quantity Price Each
5–14 $260.15
15–29 $235.25
30+ $207.57
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match
Material(s):
  • Bronze
Features:
  • Blow-out proof stem design.
  • Adjustable packing gland.
  • Vent downstream air in accordance with OSHA regulation 1910.147 for pneumatic systems.
Materials:
  • Body: Bronze.
  • Chromium plated ball.
  • RTFE seats and stuffing box ring.
Specifications:
  • Pressure rating: 0-125 PSI.
Part Number Female NPT x Female NPT Port
BBV25LV 1/4" Full
BBV38LV 3/8" Full
BBV50LV 1/2" Full
BBV75LV 3/4" Standard
BBV100LV 1" Standard
BBV125LV 1-1/4" Standard
BBV150LV 1-1/2" Standard
BBV200LV 2" Standard

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
