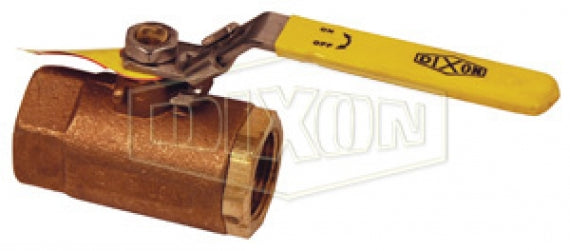

BBV125LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 1-1/4" Female NPT x 1-1/4" Female NPT | Bronze

BBV125LV by Dixon Valve | Safety Vented Ball Valve | Standard Port | 1-1/4" Female NPT x 1-1/4" Female NPT | Bronze

Sale price$186.81

Dixon Valve & Coupling
Safety Vented Ball Valve | Bronze

For air service only.
Buy More, Save More!
Quantity Price Each
5–19 $175.60
20–59 $158.79
60+ $140.11
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Female NPT
  • 1-1/4in Female NPT
  • Some Ends Match
Material(s):
  • Bronze
Features:
  • Blow-out proof stem design.
  • Adjustable packing gland.
  • Vent downstream air in accordance with OSHA regulation 1910.147 for pneumatic systems.
Materials:
  • Body: Bronze.
  • Chromium plated ball.
  • RTFE seats and stuffing box ring.
Specifications:
  • Pressure rating: 0-125 PSI.
Part Number Female NPT x Female NPT Port
BBV25LV 1/4" Full
BBV38LV 3/8" Full
BBV50LV 1/2" Full
BBV75LV 3/4" Standard
BBV100LV 1" Standard
BBV125LV 1-1/4" Standard
BBV150LV 1-1/2" Standard
BBV200LV 2" Standard
