BBOLT-10 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 BSPP Banjo Bolt | Steel

BBOLT-10 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 BSPP Bolt | Steel

Sale price$23.20

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | BSPP Bolt
Buy More, Save More!
Quantity Price Each
10–39 $21.81
40–79 $19.72
80+ $17.40
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel

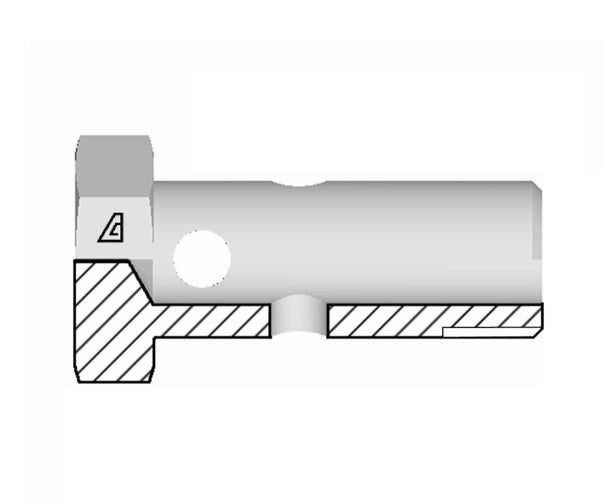

Part Number		 F Thread A B CH1 Weight
Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
BBOLT-04 1/4-19 30mm 25mm 19mm 0.08 lbs
BBOLT-06 3/8-19 38mm 31mm 22mm 0.13 lbs
BBOLT-08 1/2-14 46mm 38mm 27mm 0.21 lbs
BBOLT-10 5/8-14 51mm 42mm 28mm 0.21 lbs
BBOLT-12 3/4-14 56mm 47mm 32mm 0.37 lbs
BBOLT-16 1-11 69mm 58mm 38mm 0.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
