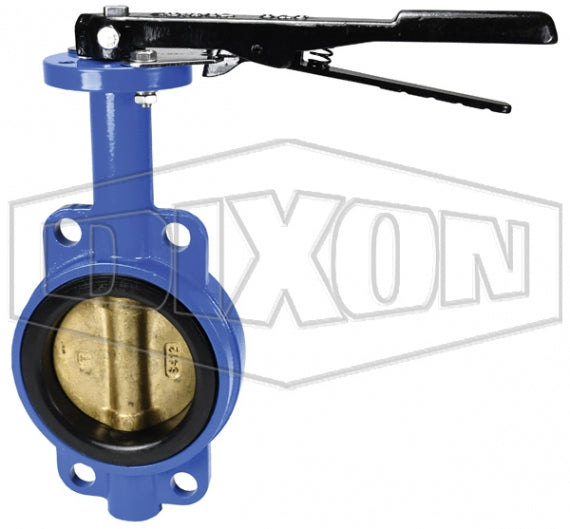

BBFVW400 by Dixon Valve | Butterfly Valve | Wafer Style | 4" 150# Flange | Nitrile Rubber Liner | Ductile Iron

BBFVW400 by Dixon Valve | Butterfly Valve | Wafer Style | 4" 150# Flange | Nitrile Rubber Liner | Ductile Iron

Sale price$244.53
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 10 position trigger grip handle.
Materials:
  • Ductile iron body, ASTM A536.
  • Aluminum bronze disc, ASTM B148, ALY.954.
  • PTFE bushing.
  • Stainless steel top and bottom stems.
Specifications:
  • Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
  • Not Recommended For Steam Service.
Part Number
Valve with
Nitrile Rubber Liner		 Part Number
Valve with
EPDM Liner		 Size
BBFVW200 BBFVW200E 2"
BBFVW300 BBFVW300E 3"
BBFVW400 BBFVW400E 4"
BBFVW600 BBFVW600E 6"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 4in 150# Flange
  • 4in 150# Flange
  • Some Ends Match
Material(s):
  • Ductile Iron
