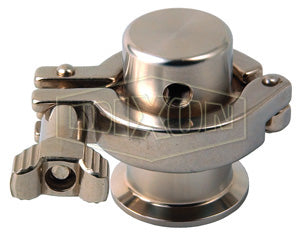

BARV-G200 Dixon Valve 2" Air Relief Valve with 1/8" NPT Tapped Blind End - 304 Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
What are the Applications?
- Bleeding of a tube line where an air pocket has formed. This application calls for installation at the top of the tube.
- Bleeding of a tube on the suction side of a pump. The suction side is bled automatically, before the pump starts, establishing a vacuum. Binding of air to liquid will be prevented, and so will subsequent cavitation. In this application the valve is mounted in front of the pump, on the top of the inlet tube.
What are the Features?
- No special tools required
- Ball and gaskets are replaceable
- Valve seals are for both pressure and vacuum
- Maximum Temperature: 212°F (100°C)
How is it Constructed?
- The valve ball is constructed of FDA, 3A approved polypropylene.
- 1/8" NPT tap
- All product contact surfaces have a radius of 1/4" or better.
How Does It Work?
- Allows air to be removed from a line or container without the liquid flowing out. Its design does not allow air to enter the line or container, even if subjected to a negative pressure. It is a double-seated valve with a freely moving polypropylene ball. The ball, which is lighter than water, closes against the upper or lower seat, depending on the pressure conditions.
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Size | Max. Operating Pressure |
Ball Material | A | B | C | E | J |
| BARV-G150 | 1-1/2" | 145 PSI | Polypropylene | 1.98" | 1.4" | 1.5" | 2.6" | 1/8" NPT |
| BARV-G200 | 2" | 145 PSI | Polypropylene | 2.52" | 1.4" | 1.5" | 2.6" | 1/8" NPT |
| Replacement Air Relief Valve Balls | ||
|---|---|---|
| Part Number | Size | Material |
| BARVE3P-G150 | 1-1/2" | Polypropylene |
| BARVE3T-G150 | 1-1/2" | PTFE |
