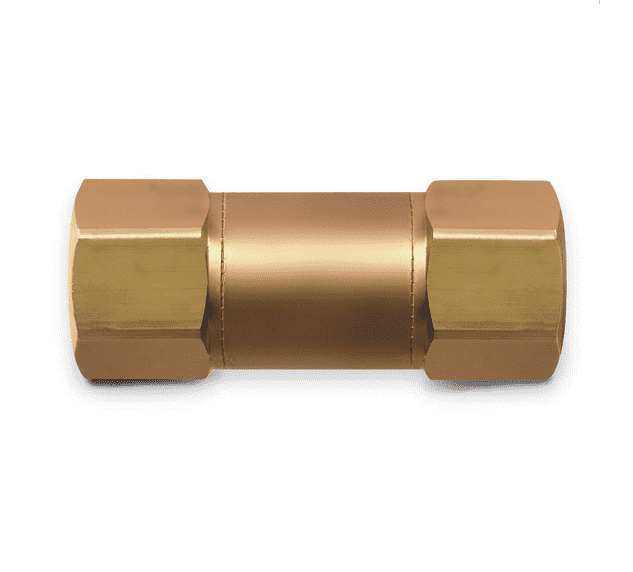

B8FS50F8 Hansen® by Danfoss | FS Series | Flow Sensor | 1/2" Female NPTF x 1/2" Body Size | Brass

B8FS50F8 Hansen® by Danfoss | FS Series | Flow Sensor | 1/2" Female NPTF x 1/2" Body Size | Brass

Sale price$126.62

Hansen® by Danfoss
FS Series | Flow Sensor

Danfoss’ Flow Sensor Series is designed to protect personnel and property in case of hose failure in compliance with Federal Safety Regulations. Flow Sensors are intended for use with compressed air.
Buy More, Save More!
Quantity Price Each
5–19 $119.02
20–59 $107.63
60+ $94.97
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • FS Series
Shape:

Straight
Features:
  • Automatically shuts off air flow to ruptured hose.
  • Reduces risk of injury or damage from hose whip.
  • Automatically resets after failure correction.
  • Operates in any orientation.
  • Compact design, economical, tamper resistant.
Applications & Markets:
  • General Industry
  • Pneumatic Tools
Materials:
  • Standard Body Material: Brass
Size Max. Operating Pressure Min. Burst Pressure Rated Flow
All Sizes 17 bar 250 psi 68 bar 1,000 psi See Chart Below
Part Number Body Size Thread Shut-off Flow, SCFM, at Inlet Pressure, PSIG Dimensions
60 PSIG 80 PSIG 100 PSIG 120 PSIG 140 PSIG 160 PSIG 180 PSIG 200 PSIG Length Hex
B4FS25F2 1/4" 1/4-18 Female NPTF 16 SCFM 18 SCFM 20 SCFM 22 SCFM 23 SCFM 25 SCFM 26 SCFM 27 SCFM 2.14"
(54.36mm)		 0.75"
(19.05mm)
B6FS37F5 3/8" 3/8-18 Female NPTF 41 SCFM 46 SCFM 50 SCFM 55 SCFM 59 SCFM 63 SCFM 66 SCFM 69 SCFM 2.50"
(63.50mm)		 0.88"
(22.35mm)
B8FS50F8 1/2" 1/2-14 Female NPTF 65 SCFM 73 SCFM 80 SCFM 87 SCFM 93 SCFM 99 SCFM 704 SCFM 109 SCFM 3.12"
(79.25mm)		 1.06"
(26.92mm)
B12FS75F13 3/4" 3/4-14 Female NPTF 105 SCFM 118 SCFM 130 SCFM 141 SCFM 152 SCFM 161 SCFM 169 SCFM 177 SCFM 3.68"
(93.47mm)		 1.38"
(35.05mm)
B16FS100F21 1" 1-11-1/2 Female NPTF 170 SCFM 191 SCFM 210 SCFM 227 SCFM 245 SCFM 260 SCFM 273 SCFM 286 SCFM 4.59"
(116.59mm)		 1.75"
(44.45mm)
Flow Data: The graph above indicates the minimum inlet pressure for various hose lengths. Each Flow Sensor has a shut-off flow rating dependent upon inlet pressure. The length of hose and fitting size are critical in the proper operation of the valve. For example, with the B8FS50F8 Flow Sensor, the hose I.D. must be 1/2" using only 1/2" pipe thread end fittings. Thirty feet of hose requires at least 20 psig inlet pressure; fifty feet of hose requires at least 28 psig inlet pressure; and seventy-five feet of hose requires at least 36 psig inlet pressure. Inlet pressures lower than those indicated on the curves above will not guarantee protection in case of hose failure. Valve shut-off occurs only when flow exceeds the flow rating for the inlet pressure. If hose lengths greater than 75 feet are required, a 1/2" size or larger Flow Sensor must be installed on the inlet end of each 75-foot section, and a correspondingly higher inlet pressure must be supplied for proper operation of the Flow Sensor to assure safety.

*All flow sensors have a pressure drop of approximately 2 psid at 80% of shut-off flow.
