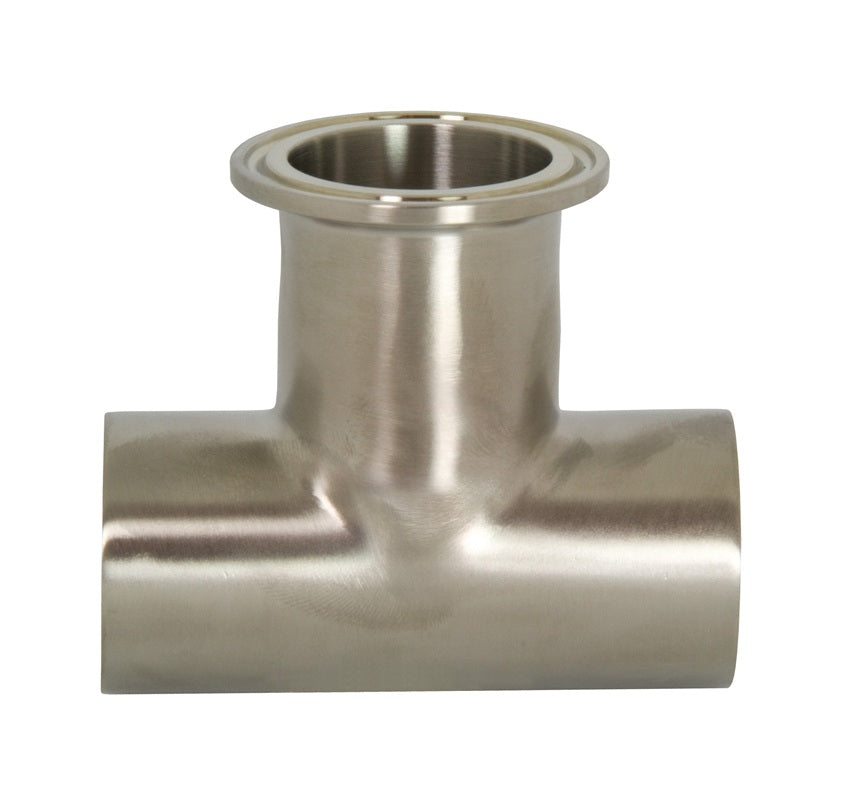

B7WWM-R400 Dixon Valve 316L Stainless Steel Sanitary Polished Weld Run x Clamp Branch Tee - 4" Tube OD
Dixon Sanitary Fittings
Polished Polished Weld Run x Clamp Branch Tee
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $162.08 |
| 20–59 | $146.57 |
| 60+ | $129.32 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Material(s):
Special Properties:
| Features: | |||
|---|---|---|---|
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Wall Thickness | A | B | OD | ID |
| - | B7WWM-R50 | 1/2" | - | - | - | - | - |
| - | B7WWM-R75 | 3/4" | - | - | - | - | - |
| B7WWM-G100 | B7WWM-R100 | 1" | 0.065" | 2.25" | 1.63" | 1.00" | 0.87" |
| B7WWM-G150 | B7WWM-R150 | 1-1/2" | 0.065" | 3.31" | 2.16" | 1.50" | 1.37" |
| B7WWM-G200 | B7WWM-R200 | 2" | 0.065" | 4.12" | 2.56" | 2.00" | 1.87" |
| B7WWM-G250 | B7WWM-R250 | 2-1/2" | 0.065" | 4.69" | 2.84" | 2.50" | 2.37" |
| B7WWM-G300 | B7WWM-R300 | 3" | 0.065" | 5.19" | 3.09" | 3.00" | 2.87" |
| B7WWM-G400 | B7WWM-R400 | 4" | 0.083" | 6.88" | 4.06" | 4.00" | 3.83" |
