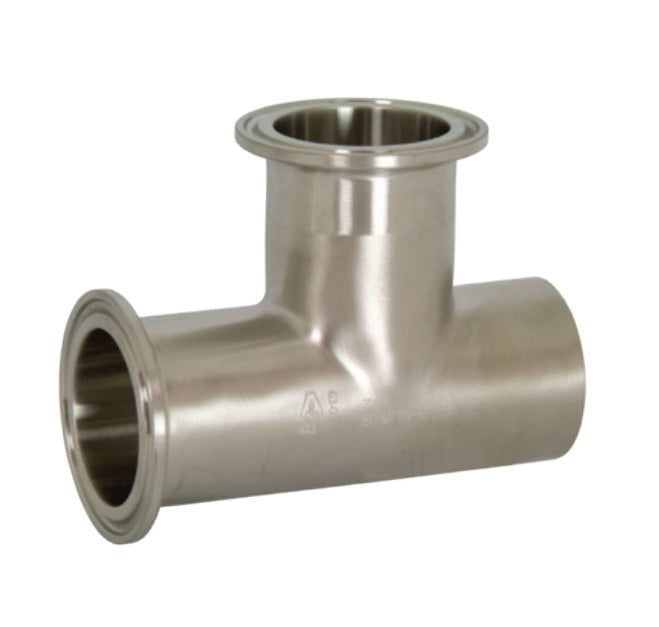

B7WMM-G400 Dixon Valve 304 Stainless Steel Sanitary Polished Weld x Clamp Run x Clamp Branch Tee - 4" Tube OD
Dixon Sanitary Fittings
Polished Weld x Clamp Run x Clamp Branch Tee
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $229.45 |
| 20–59 | $207.49 |
| 60+ | $183.08 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Material(s):
Special Properties:
| Features: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Wall Thickness | A | B |
| B7WMM-G100 | B7WMM-R100 | 1" | 0.065" | 2.750" | 1.625" |
| B7WMM-G150 | B7WMM-R150 | 1-1/2" | 0.065" | 3.812" | 2.156" |
| B7WMM-G200 | B7WMM-R200 | 2" | 0.065" | 4.624" | 2.562" |
| B7WMM-G250 | - | 2-1/2" | 0.065" | 5.188" | 2.844" |
| B7WMM-G300 | - | 3" | 0.065" | 5.688" | 3.094" |
| B7WMM-G400 | - | 4" | 0.083" | 7.500" | 4.063" |
