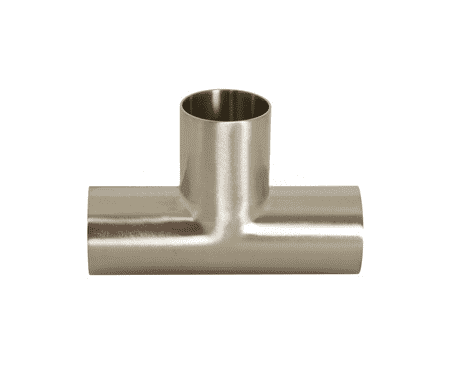

B7W-G800P Dixon Valve 304 Stainless Steel Sanitary Polished Long Weld Tee - 8" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Dimensions
|
Nominal Wall | Weight (Lbs.) | |||
|---|---|---|---|---|---|---|---|
| A | B | OD | ID | ||||
| B7W-G100P | 1" | 3.75" | 1.88" | 1.00" | 0.87" | .065" | 0.2500 |
| B7W-G150P | 1-1/2" | 4.50" | 2.25" | 1.50" | 1.37" | .065" | 0.4500 |
| B7W-G200P | 2" | 6.00" | 3.00" | 2.00" | 1.87" | .065" | 0.8100 |
| B7W-G250P | 2-1/2" | 6.00" | 3.00" | 2.50" | 2.37" | .065" | 1.0000 |
| B7W-G300P | 3" | 6.50" | 3.25" | 3.00" | 2.87" | .065" | 1.2300 |
| B7W-G400P | 4" | 7.75" | 3.88" | 4.00" | 3.83" | .083" | 2.3200 |
| B7W-G800P | 8" | 14.00" | 7.00" | 8.00" | 7.78" | .120" | 11.5000 |
