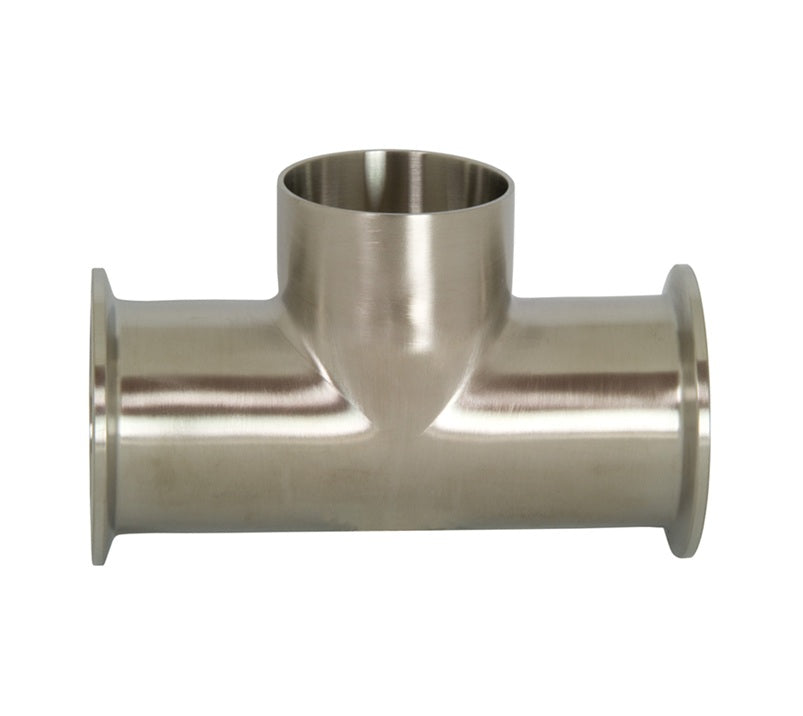

B7MMW-R300 Dixon Valve 316L Stainless Steel Sanitary Polished Clamp Run x Weld Branch Tee (#7 Finish) - 3" Tube OD
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
What are the Features?
- 3A sanitary finish ID and OD.
 |
|||||||
|---|---|---|---|---|---|---|---|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Wall Thickness | A | B | OD | ID |
| B7MMW-G100 | - | 1" | 0.065" | 3.25" | 1.13" | 1.00" | 0.87" |
| B7MMW-G150 | B7MMW-R150 | 1-1/2" | 0.065" | 4.31" | 1.66" | 1.50" | 1.37" |
| B7MMW-G200 | B7MMW-R200 | 2" | 0.065" | 5.12" | 2.06" | 2.00" | 1.87" |
| B7MMW-G250 | - | 2-1/2" | 0.065" | 5.69" | 2.34" | 2.50" | 2.37" |
| B7MMW-G300 | B7MMW-R300 | 3" | 0.065" | 6.19" | 2.59" | 3.00" | 2.87" |
| B7MMW-G400 | - | 4" | 0.083" | 8.13" | 3.44" | 4.00" | 3.83" |
