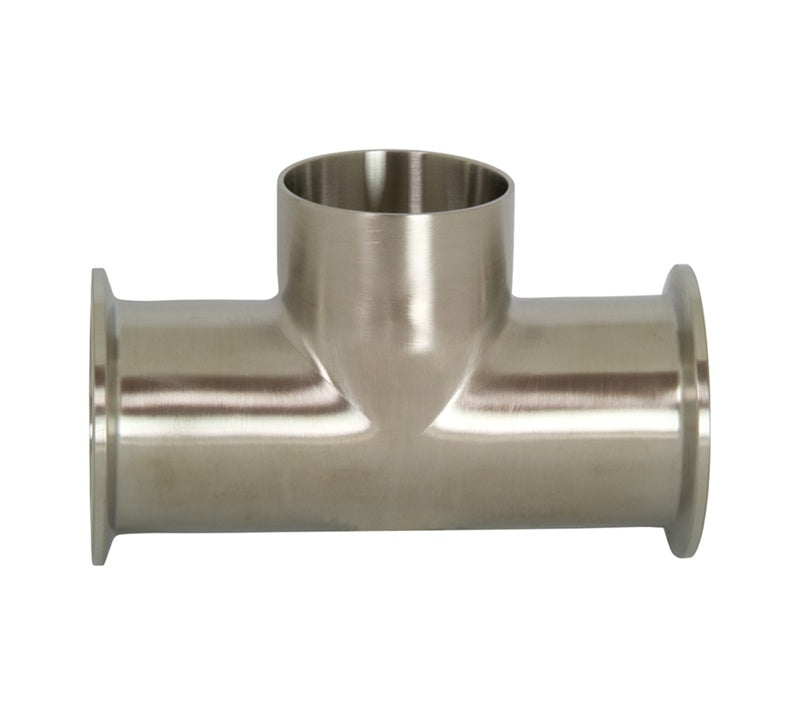

B7MMW-G250 Dixon Valve 304 Stainless Steel Sanitary Polished Clamp Run x Weld Branch Tee (#7 Finish) - 2-1/2" Tube OD
Dixon Sanitary
Polished Clamp Run x Weld Branch Tee
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $174.70 |
| 20–59 | $157.97 |
| 60+ | $139.39 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Material(s):
Special Properties:
| Features: | |||
|---|---|---|---|
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| 304 Stainless Steel Part Number |
316L Stainless Steel Part Number |
Tube OD | Wall Thickness | A | B | OD | ID |
| B7MMW-G100 | - | 1" | 0.065" | 3.25" | 1.13" | 1.00" | 0.87" |
| B7MMW-G150 | B7MMW-R150 | 1-1/2" | 0.065" | 4.31" | 1.66" | 1.50" | 1.37" |
| B7MMW-G200 | B7MMW-R200 | 2" | 0.065" | 5.12" | 2.06" | 2.00" | 1.87" |
| B7MMW-G250 | - | 2-1/2" | 0.065" | 5.69" | 2.34" | 2.50" | 2.37" |
| B7MMW-G300 | B7MMW-R300 | 3" | 0.065" | 6.19" | 2.59" | 3.00" | 2.87" |
| B7MMW-G400 | - | 4" | 0.083" | 8.13" | 3.44" | 4.00" | 3.83" |
