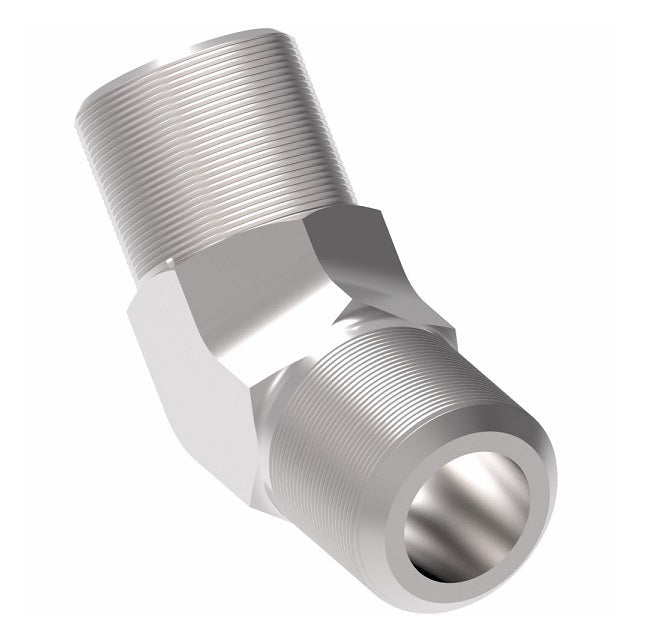

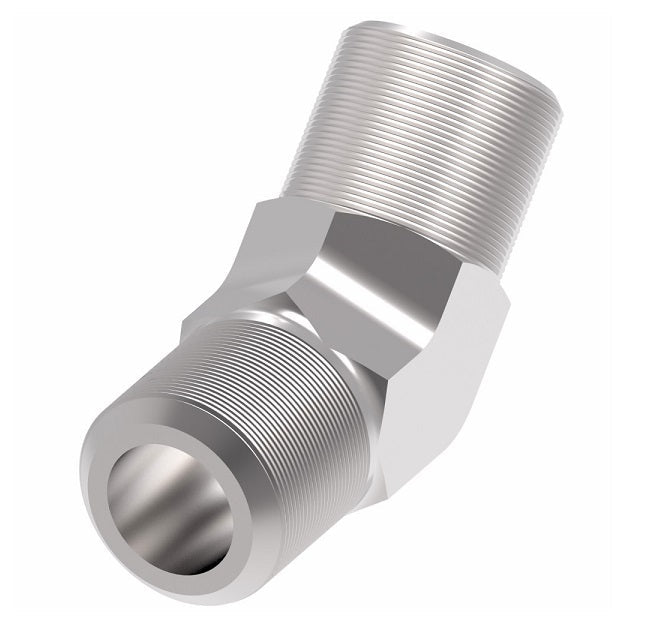

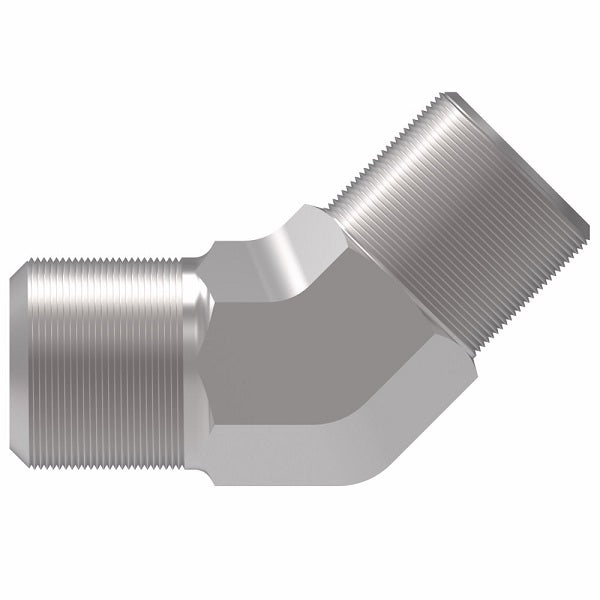

B7355X12 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector (Body Only) | 3/4" Male Pipe x 3/4" Tube OD | Steel
B7355X12 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector (Body Only) | 3/4" Male Pipe x 3/4" Tube OD | Steel
B7355X12 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector (Body Only) | 3/4" Male Pipe x 3/4" Tube OD | Steel

B7355X12 Ermeto by Danfoss | 7000 Series | Male 45° Elbow Connector (Body Only) | 3/4" Male Pipe x 3/4" Tube OD | Steel

Sale price$51.20
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080302
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Main Pipe Thread D D1 M N Across
Flats
7355X4X4 B7355X4X4 1/4" 1/4" 0.203" 0.281" 0.83" 0.86" 9/16"
7355X6 B7355X6 3/8" 1/4" 0.281" 0.281" 0.83" 0.86" 9/16"
7355X8 B7355X8 1/2" 3/8" 0.422" 0.406" 0.98" 0.95" 3/4"
7355X10 B7355X10 5/8" 1/2" 0.500" 0.531" 1.08" 1.17" 7/8"
7355X12 B7355X12 3/4" 3/4" 0.656" 0.719" 1.27" 1.20" 1-1/16"
7355X16 B7355X16 1" 1" 0.875" 0.938" 1.36" 1.48" 1-5/16"

Additional Product Data:

Shape:

45 Degree

Ends Configuration:
  • 3/4in Male NPT
  • 3/4in Tube Compression
Material(s):
  • Steel
