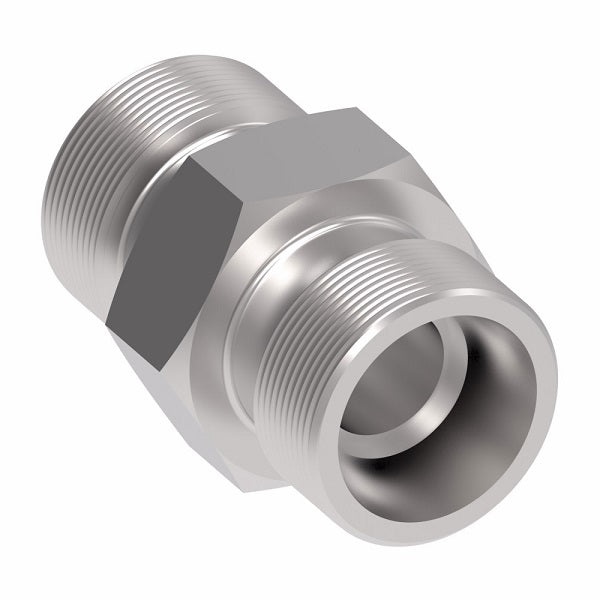

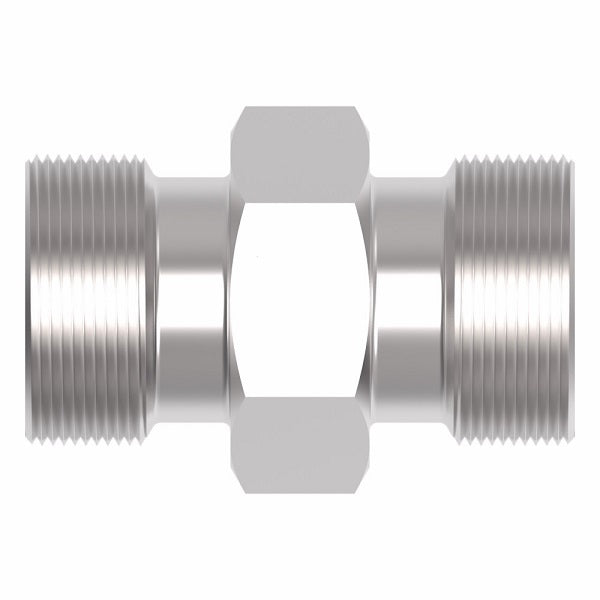

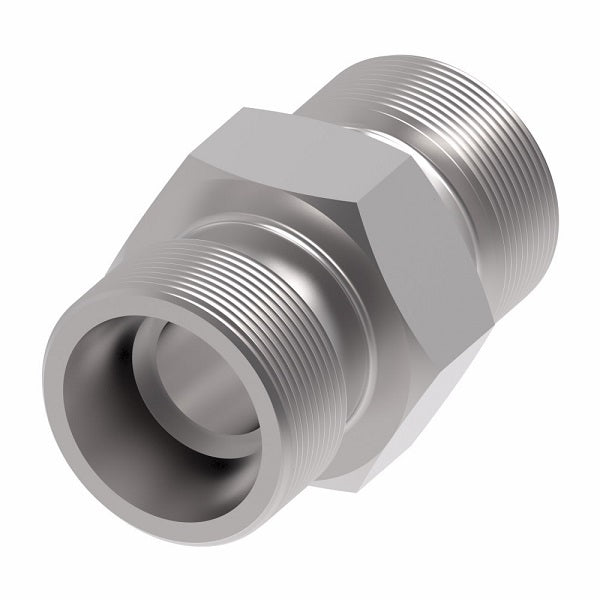

B7306X8 Ermeto by Danfoss | 7000 Series | Large Hex Union Adapter (Body Only) | 1/2" Tube x 1/2" Tube | Steel
B7306X8 Ermeto by Danfoss | 7000 Series | Large Hex Union Adapter (Body Only) | 1/2" Tube x 1/2" Tube | Steel
B7306X8 Ermeto by Danfoss | 7000 Series | Large Hex Union Adapter (Body Only) | 1/2" Tube x 1/2" Tube | Steel

B7306X8 Ermeto by Danfoss | 7000 Series | Large Hex Union Adapter (Body Only) | 1/2" Tube x 1/2" Tube | Steel

Sale price$28.32
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080119
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Hex C D D1 L
7306X4 B7306X4 1/4" 11/16" 0.203" 0.203" 1.18"
7306X6 B7306X6 3/8" 13/16" 0.281" 0.281" 1.24"
7306X8 B7306X8 1/2" 1" 0.422" 0.281" 1.33"
7306X8X6 B7306X8X6 1/2 x 3/8 1" 0.422" 0.422" 1.42"
7306X12 B7306X12 3/4" 1-3/8" 0.656" 0.656" 1.81"
7306X16 B7306X16 1" 1-5/8" 0.875" 0.875" 1.81"

Additional Product Data:

Shape:

Straight

Material(s):
  • Steel
