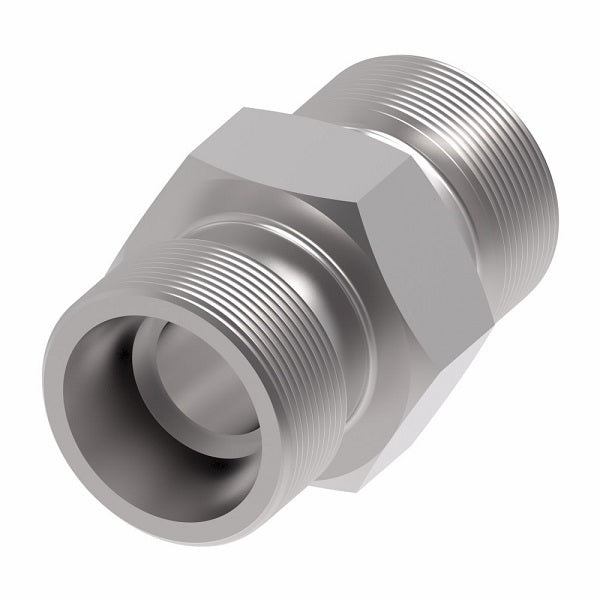

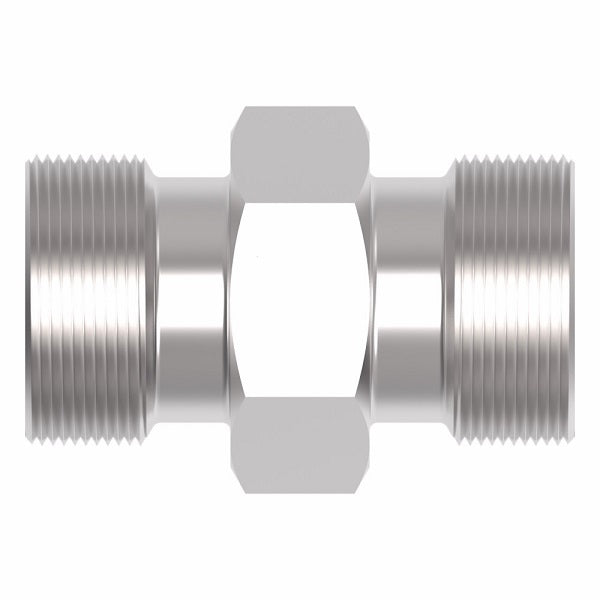

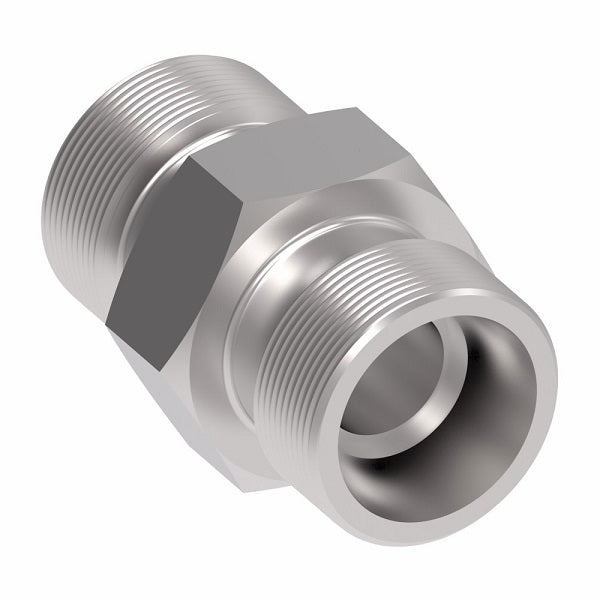

B7305X6 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 3/8" Tube x 3/8" Tube | Steel
B7305X6 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 3/8" Tube x 3/8" Tube | Steel
B7305X6 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 3/8" Tube x 3/8" Tube | Steel

B7305X6 Ermeto by Danfoss | 7000 Series | Small Hex Union Adapter (Body Only) | 3/8" Tube x 3/8" Tube | Steel

Minimum Order Quantity: 5 Units

Sale price$3.49
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080101
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Hex C D D1 L
7305X2 B7305X2 1/8" 7/16" 0.093" 0.093" 1.02"
7305X3 B7305X3 3/16" 7/16" 0.125" 0.125" 1.11"
7305X4 B7305X4 1/4" 1/2" 0.203" 0.203" 1.18"
7305X5 B7305X5 5/16" 9/16" 0.234" 0.234" 1.18"
7305X6 B7305X6 3/8" 5/8" 0.281" 0.281" 1.24"
7305X6X4 B7305X6X4 3/8" 5/8" 0.281" 0.203" 1.22"
7305X8 B7305X8 1/2" 13/16" 0.422" 0.422" 1.42"
7305X8X6 B7305X8X6 1/2" 13/16" 0.422" 0.281" 1.33"
7305X10 B7305X10 5/8" 15/16" 0.500" 0.500" 1.61"
7305X12 B7305X12 3/4" 1-1/8" 0.656" 0.656" 1.81"
7305X14 B7305X14 7/8" 1-1/4" 0.718" 0.718" 1.81"
7305X16 B7305X16 1" 1-3/8" 0.875" 0.875" 1.81"
7305X20 B7305X20 1-1/4" 1-11/16" 1.093" 1.093" 1.89"
7305X24 B7305X24 1-1/2" 2" 1.344 1.344" 1.96"

Additional Product Data:

Shape:

Straight

Material(s):
  • Steel
