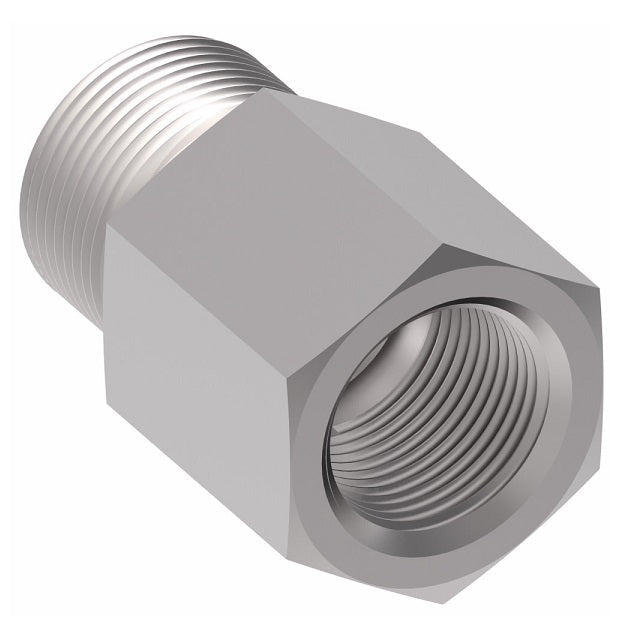

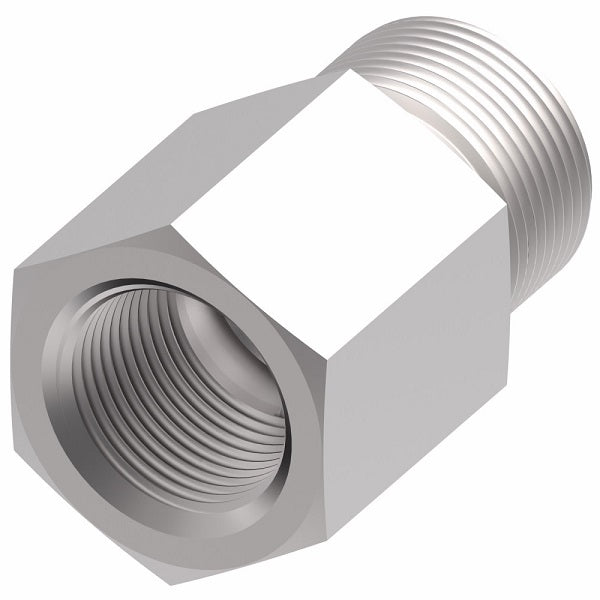

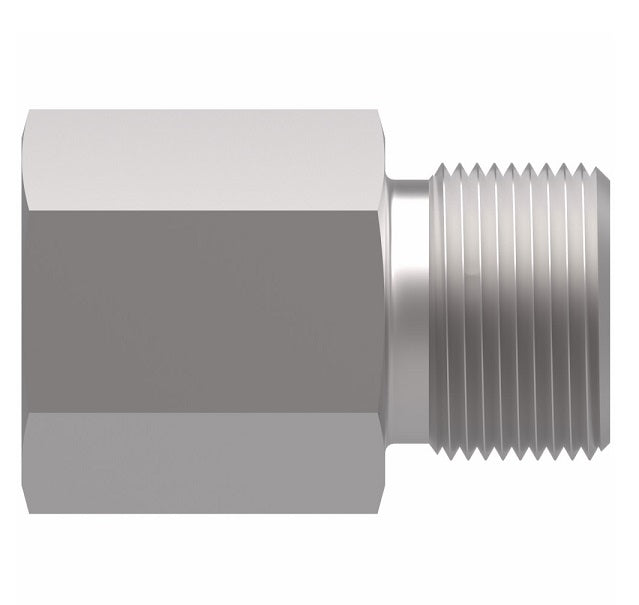

B7255X4X4 Ermeto by Danfoss | 7000 Series | Female Connector (Body Only) | 1/4" Female NPTF x 1/4" Tube OD | Steel
B7255X4X4 Ermeto by Danfoss | 7000 Series | Female Connector (Body Only) | 1/4" Female NPTF x 1/4" Tube OD | Steel
B7255X4X4 Ermeto by Danfoss | 7000 Series | Female Connector (Body Only) | 1/4" Female NPTF x 1/4" Tube OD | Steel

B7255X4X4 Ermeto by Danfoss | 7000 Series | Female Connector (Body Only) | 1/4" Female NPTF x 1/4" Tube OD | Steel

Minimum Order Quantity: 5 Units

Sale price$4.65
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080103
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Pipe Thread Hex C D L
7255X2 - 1/8" 1/8" 9/16" 0.093" 1.05"
7255X3 B7255X3 3/16" 1/8" 9/16" 0.125" 1.08"
7255X4 B7255x4 1/4" 1/8" 9/16" 0.203" 1.09"
7255X4X4 B7255X4X4 1/4" 1/4" 3/4" 0.203" 1.20"
7255X5 B7255X5 5/16" 1/8" 9/16" 0.234" 1.08"
7255X6 B7255X6 3/8" 1/4" 3/4" 0.281" 1.31"
7255X6X6 B7255X6X6 3/8" 3/8" 7/8" 0.281" 1.40"
7255X8 - 1/2" 3/8" 7/8" 0.422" 1.47"
7255X8X4 - 1/2" 1/4" 7/8" 0.422" 1.38"
7255X8X8 B7255X8X8 1/2" 1/2" 1-1/8" 0.422" 1.63"
7255X10 B7255X10 5/8" 1/2" 1-1/8" 0.500" 1.76"
7255X12 B7255X12 3/4" 3/4" 1-3/8" 0.656" 1.89"
7255X14 - 7/8" 3/4" 1-3/8" 0.718" 1.86"
7255X16 B7255X16 1" 1" 1-5/8" 0.875" 2.13"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Tube Compression
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
