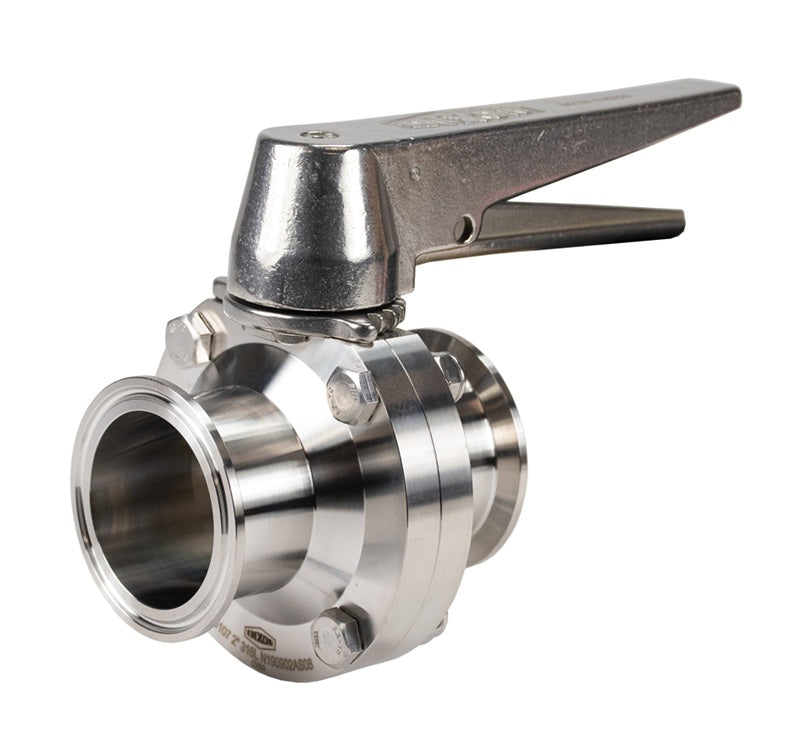

B5107V100CC-C Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - FKM Seats

B5107V100CC-C Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - FKM Seats

Sale price$267.81

Dixon Sanitary Valves
Clamp End Butterfly Valve with Trigger Handle [C] | 316L Stainless Steel with FKM Seats
Buy More, Save More!
Quantity Price Each
5–14 $251.74
15–29 $227.64
30+ $200.86
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Sanitary Clamp End
  • 1in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel
  • Seat: FKM
  • Seat lubricant: MOLYKOTE® 111
Specifications:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C)
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C)
Part Number Size A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)
B5107V050CC-C 1/2" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V075CC-C 3/4" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V100CC-C 1" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V150CC-C 1-1/2" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V200CC-C 2" 3.80" 0.90" 3.90" 3.00" 5.90"
B5107V250CC-C 2-1/2" 3.80" 0.90" 4.60" 3.40" 5.90"
B5107V300CC-C 3" 4.10" 1.20" 5.20" 3.50" 5.90"
B5107V400CC-C 4" 4.80" 1.20" 6.70" 4.30" 5.90"
