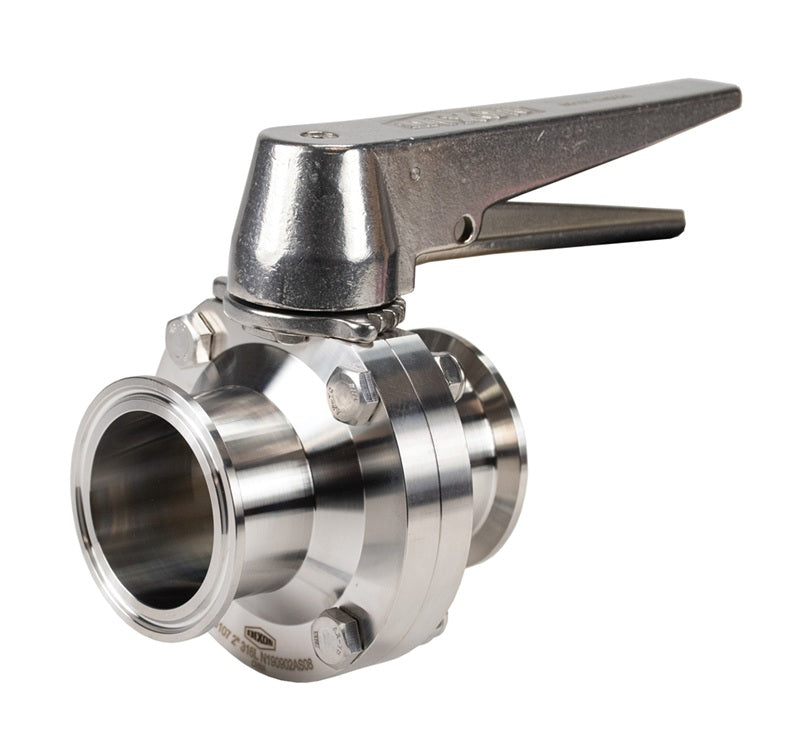

B5107E300CC-C Dixon Valve 3" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - EPDM Seats

B5107E300CC-C Dixon Valve 3" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - EPDM Seats

Sale price$433.77

Dixon Sanitary Valves
Clamp End Butterfly Valve with Trigger Handle [C] | 316L Stainless Steel with EPDM Seats
Buy More, Save More!
Quantity Price Each
5–14 $407.74
15–29 $368.70
30+ $325.33
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Sanitary Clamp End
  • 3in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel
  • Seat: EPDM
  • Seat lubricant: MOLYKOTE® 111
Specifications:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C)
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C)
Part Number Size A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)
B5107E100CC-C 1" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107E300CC-C 3" 4.10" 1.20" 5.20" 3.50" 5.90"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
