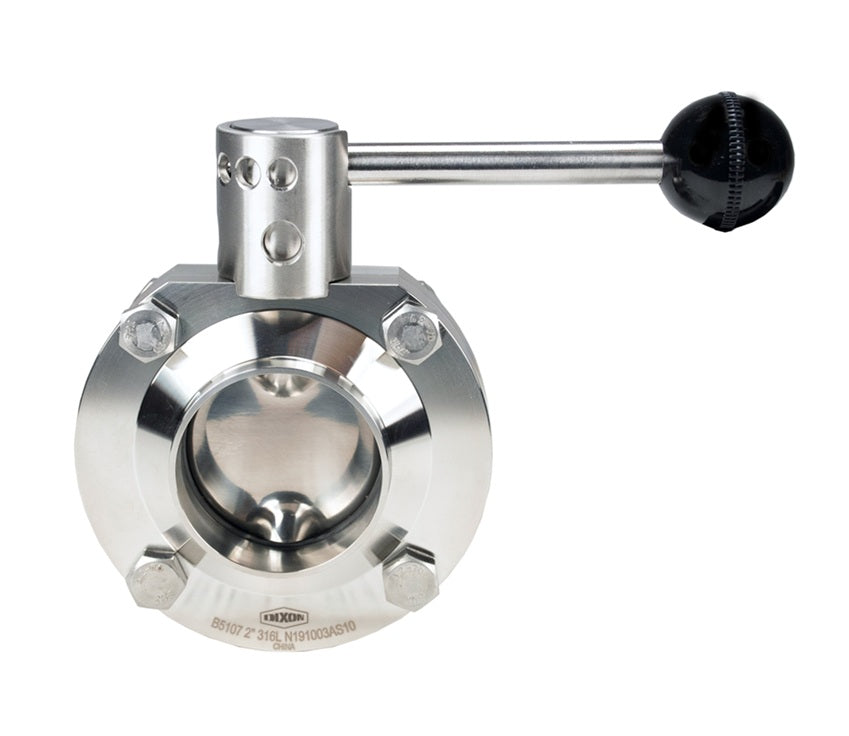

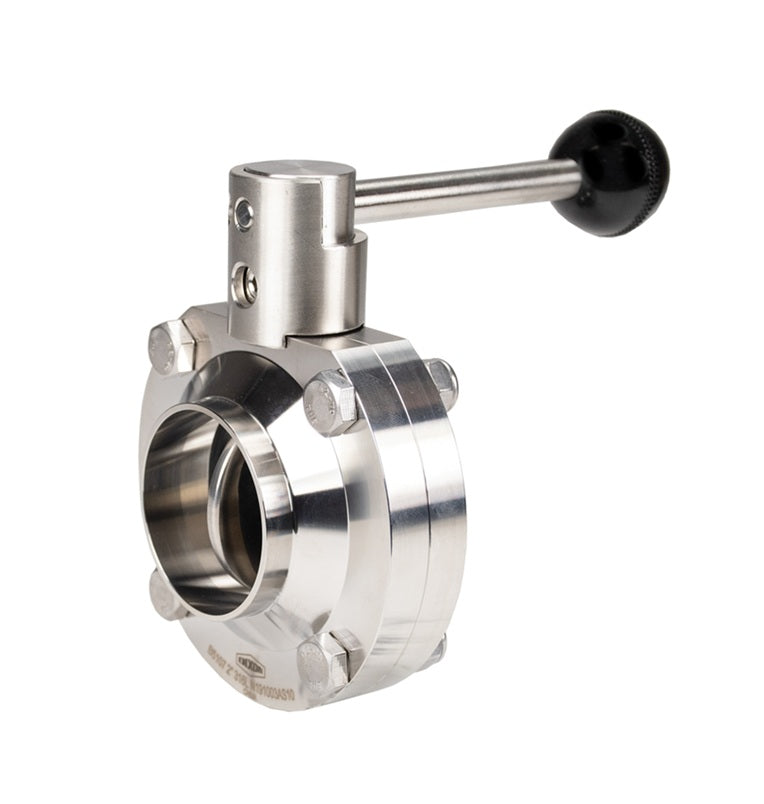

B5107E200BB-A Dixon Valve 2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Pull Handle - EPDM Seats
Dixon Sanitary Valves
Weld End Butterfly Valve with Pull Handle [A] | 316L Stainless Steel with EPDM Seats
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $196.27 |
| 20–59 | $177.48 |
| 60+ | $156.60 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Sealing Material: | |||
|
| Part Number | Size | Dimensions  |
||||||
|---|---|---|---|---|---|---|---|---|
| A (in) |
B (in) |
C (in) |
D (in) |
E (in) |
F (in) |
G (in) |
||
| B5107E050BB-A | 1/2" | 1.87" | 0.90" | 3.10 " | 2.60" | 4.60" | 0.37" | 0.50" |
| B5107E075BB-A | 3/4" | 1.87" | 0.90" | 3.10" | 2.60" | 4.60" | 0.62" | 0.75" |
| B5107E100BB-A | 1" | 1.87" | 0.90" | 3.10" | 2.60" | 4.60" | 0.87" | 1.00" |
| B5107E150BB-A | 1-1/2" | 1.87" | 0.90" | 3.10" | 2.60" | 4.60" | 1.37" | 1.50" |
| B5107E200BB-A | 2" | 2.06" | 0.90" | 3.90" | 3.00" | 4.60" | 1.87" | 2.00" |
| B5107E250BB-A | 2-1/2" | 2.12" | 0.90" | 4.60" | 3.40" | 4.60" | 2.37" | 2.50" |
| B5107E300BB-A | 3" | 2.50" | 1.20" | 5.20" | 3.50" | 6.50" | 2.87" | 3.00" |
| B5107E400BB-A | 4" | 3.18" | 1.20" | 6.70" | 4.30" | 6.50" | 3.83" | 4.00" |
| B5107E800BB-A | 8" | 4.97" | 1.20" | 11.20" | 7.80" | 18.10" | 7.78" | 8.00" |
