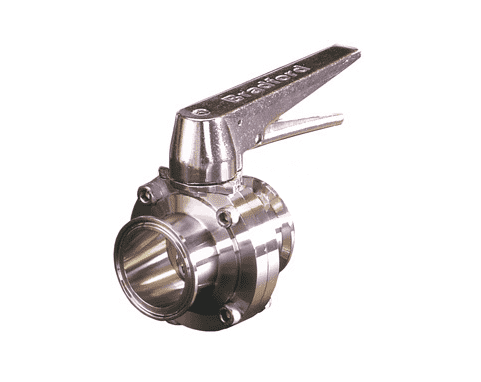

B5101V400CC-C Dixon Valve 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Trigger Handle and FKM Seats
Dixon

B5101V400CC-C Dixon Valve 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Trigger Handle and FKM Seats

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • 100% hydraulic tested / 100% inspected.
  • Field serviceable (no special tools required).
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 32°F to 200°F (0°C to 93°C).
  • All wetted surfaces are sanitary finished to < 32Ra.
Notes:
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C
  • Handle is not assembled when shipped.
  • Not for use with bolted clamps.
Part Number Size Dimensions

 Break Torque (in-lbs.) PSI @ 68 deg. F Weight (Lbs.)
A B C D E F G
B5101V100CC-C 1" 6.6" 3.0" 1.7" 0.9" 3.5" 0.9" 3.1" 70 140 3.8800
B5101V400CC-C 4" 6.6" 4.8" 1.7" 1.2" 4.8" 3.8" 6.7" 450 85 14.0300
