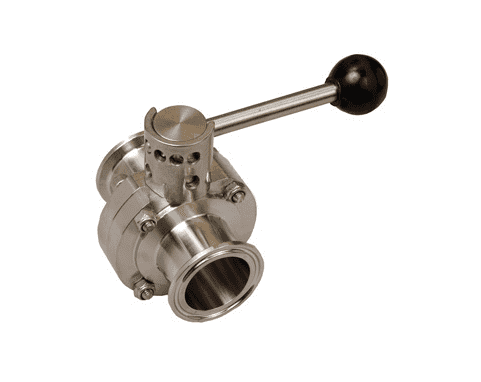

B5101E250CC-A Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats
Dixon

B5101E250CC-A Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • The pull style handle allows you to set the valve in four different positions simply by pulling and turning.
  • 100% hydraulic tested / 100% inspected.
  • All wetted surfaces are sanitary finished to < 32Ra.
  • Field serviceable (no special tools required).
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 15 deg. F to 200 deg. F.
  • Clamp style is standard.
Part Number Size Dimensions

Break Torque
(in-lbs.)		 PSI @
68 deg. F		 Weight
(Lbs.)
A B C D E F G
B5101E250CC-A 2-1/2" 4.4" 3.5" 1.4" 0.9" 3.8" 2.4" 4.6" 210 110 5.4250
