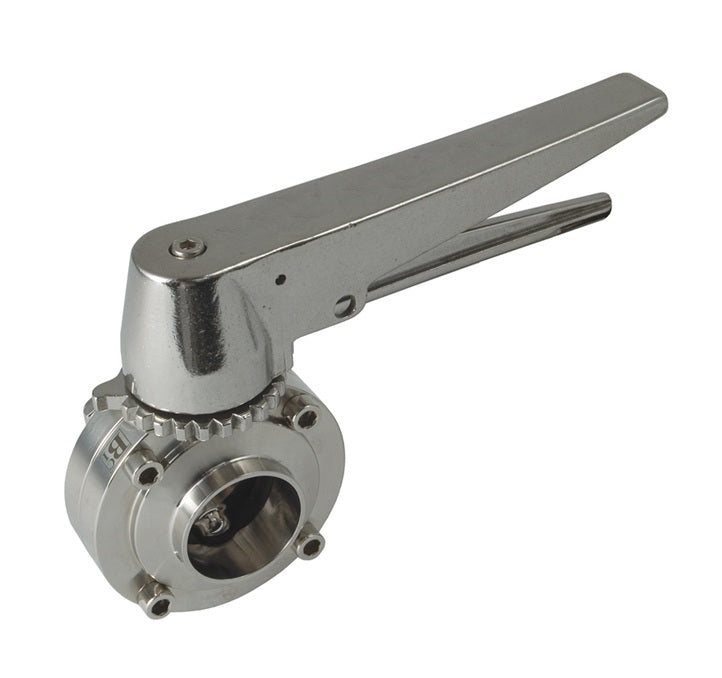

B5101E250BB-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - EPDM Seats
Dixon

B5101E250BB-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Trigger Handle - EPDM Seats

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • All wetted surfaces are sanitary finished to < 32Ra
  • The stainless steel trigger handle offers twelve positions which make it easy to understand how to actuate the valve.
  • Lockout / tagout handle.
  • Low resistance to flow.
  • Bi-directions flow.
  • Gentle to media.
  • Suitable for low and medium viscosity fluids.
  • Can be serviced in the field.
  • Self-draining.
  • Optional wing nut kit is available for easy assembly and disassembly.
  • 100% hydraulic tested / 100% inspected.
Materials:
  • Body and Disc: 316L Stainless Steel
  • Seat: EPDM
Specifications:
  • Vacuum Rating: 0.4 inches Hg at 68°F (20°C)
  • Operating Temperature Range: 15°F to 200°F (-9°C to 93°C)
Notes:
  • Not for use with bolted clamps.
  • Handle is not assembled when shipped.
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C.
Part Number Size Dimensions

 Weight (Lbs.)
A B C D E F G
B5101E050BB-C 1/2" 6.6" 3.0" 1.7" 0.9" 1.9" 0.37" 3.1" 2.5200
B5101E075BB-C 3/4" 6.6" 3.0" 1.7" 0.9" 1.9" 0.62" 3.1" 2.5400
B5101E100BB-C 1" 6.6" 3.0" 1.7" 0.9" 1.9" 0.9" 3.1" 3.5400
B5101E250BB-C 2-1/2" 6.6" 3.7" 1.7" 0.9" 2.1" 2.4" 4.6" 5.0000
B5101E300BB-C 3" 6.6" 3.9" 1.7" 1.2" 2.5" 2.9" 5.2" 7.0300
