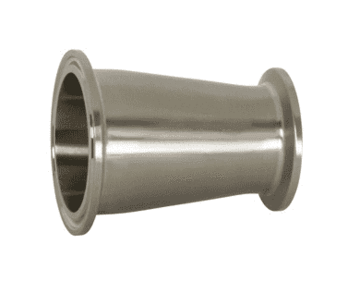

B3114MP-R300100 Dixon Valve 316L Stainless Steel Sanitary Clamp Concentric Reducer - 3" x 1" Tube OD
Dixon Sanitary Fittings Sanitary Clamp Reducer - Clamp Concentric Reducer - 316L Stainless Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $159.39 |
| 20–59 | $144.13 |
| 60+ | $127.17 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Dimensions
|
Weight (Lbs.) |
|---|---|---|---|
| A | |||
| B3114MP-R7550 | 3/4" x 1/2" | 2.00" | 0.1050 |
| B3114MP-R10050 | 1" x 1/2" | 3.00" | 0.2600 |
| B3114MP-R10075 | 1" x 3/4" | 2.00" | 0.2025 |
| B3114MP-R15050 | 1-1/2" x 1/2" | 5.00" | 0.3500 |
| B3114MP-R15075 | 1-1/2" x 3/4" | 4.00" | 1.3400 |
| B3114MP-R150100 | 1-1/2" x 1" | 3.00" | 0.4000 |
| B3114MP-R20050 | 2" x 1/2" | 7.00" | 0.6150 |
| B3114MP-R20075 | 2" x 3/4" | 6.00" | 0.5900 |
| B3114MP-R200100 | 2" x 1" | 5.00" | 0.6400 |
| B3114MP-R200150 | 2" x 1-1/2" | 3.00" | 0.4100 |
| B3114MP-R250100 | 2-1/2" x 1" | - | - |
| B3114MP-R250150 | 2-1/2" x 1-1/2" | 5.00" | 0.7050 |
| B3114MP-R250200 | 2-1/2" x 2" | 3.00" | 0.5600 |
| B3114MP-R300100 | 3" x 1" | 9.00" | 1.2550 |
| B3114MP-R300150 | 3" x 1-1/2" | 7.00" | 1.2700 |
| B3114MP-R300200 | 3" x 2" | 5.00" | 0.9400 |
| B3114MP-R300250 | 3" x 2-1/2" | 3.00" | 0.6900 |
| B3114MP-R400100 | 4" x 1" | - | - |
| B3114MP-R400150 | 4" x 1-1/2" | 11.13" | 2.3600 |
| B3114MP-R400200 | 4" x 2" | 9.13" | 2.6600 |
| B3114MP-R400250 | 4" x 2-1/2" | 7.13" | 1.8160 |
| B3114MP-R400300 | 4" x 3" | 5.13" | 1.5800 |
| B3114MP-R600200 | 6" x 2" | 6.88" | 3.1500 |
| B3114MP-R600300 | 6" x 3" | 6.88" | 3.3550 |
| B3114MP-R600400 | 6" x 4" | 7.00" | 3.9100 |
| B3114MP-R800400 | 8" x 4" | 7.50" | 14.0000 |
| B3114MP-R800600 | 8" x 6" | 7.75" | 14.0000 |
