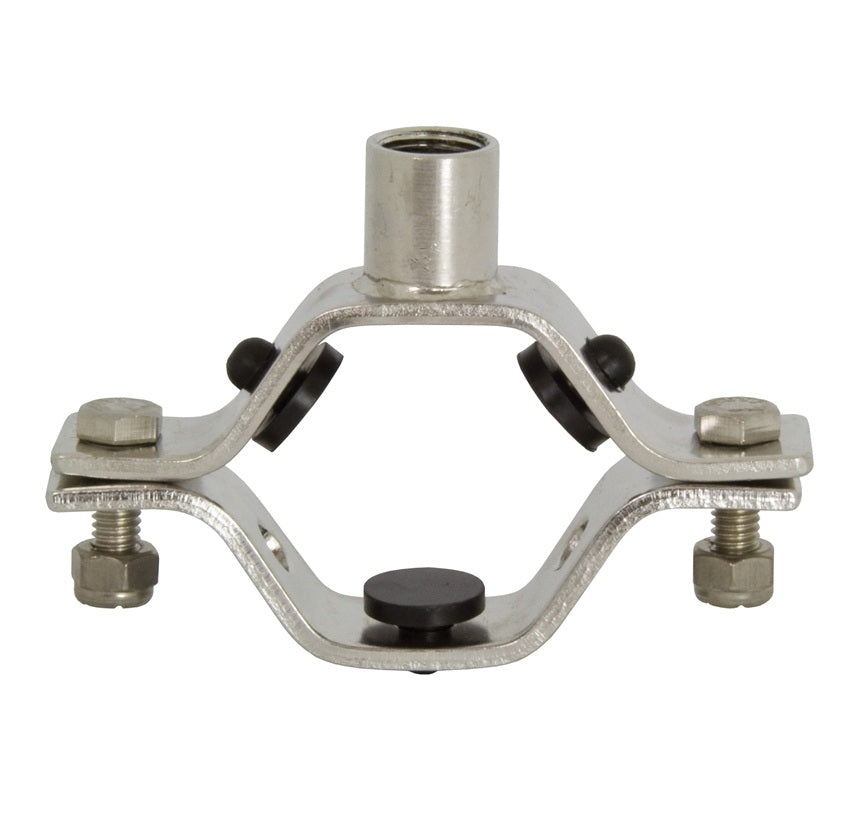

B24RGC-G600 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets and Coupler - 6" Tube OD
Dixon

B24RGC-G600 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets and Coupler - 6" Tube OD

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Coupler has 3/8" NPT.
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Weight (Lbs.)
B24RGC-G75 1/2" - 3/4" 0.4300
B24RGC-G100 1" 0.4300
B24RGC-G150 1-1/2" 0.4950
B24RGC-G200 2" 0.6050
B24RGC-G250 2-1/2" 0.6550
B24RGC-G300 3" 0.7500
B24RGC-G400 4" 3.0000
B24RGC-G600 6" 1.2150
