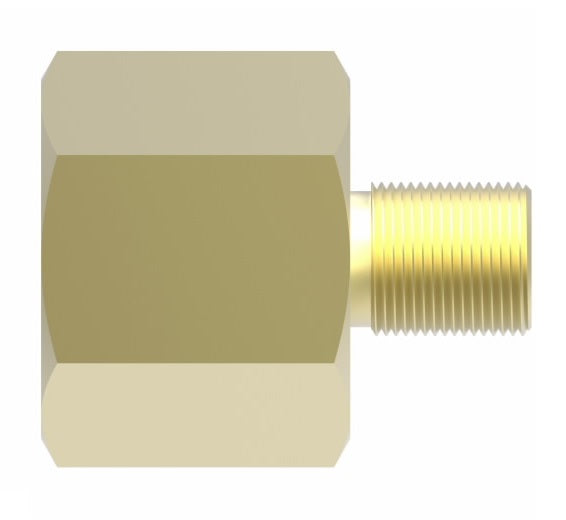

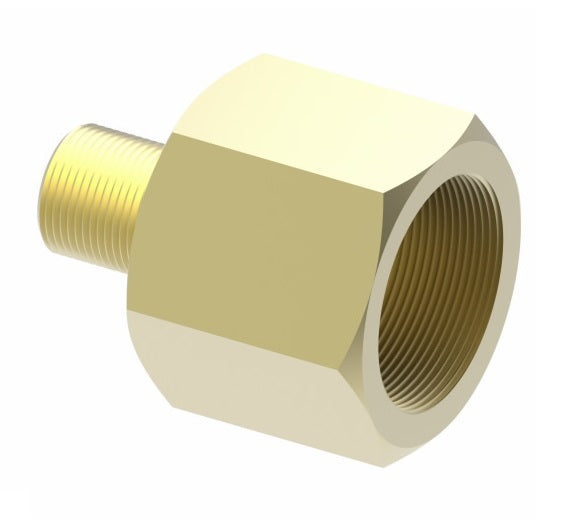

B1366X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Female Connector (Body Only) | 3/8" Tube OD x 3/8" Female Pipe | Brass
B1366X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Female Connector (Body Only) | 3/8" Tube OD x 3/8" Female Pipe | Brass

B1366X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Female Connector (Body Only) | 3/8" Tube OD x 3/8" Female Pipe | Brass

Sale price$10.63

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Female Connector
Buy More, Save More!
Quantity Price Each
10–39 $9.99
40–79 $9.04
80+ $7.97
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120103BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number		 Brass
Body Only
Part Number		 Tube O.D. Female Pipe Thread Hex
C		 D L
1366X6 - 3/8" 1/4" 11/16" 0.312" 1.19"
1366X6X6 B1366X6X6 3/8" 3/8" 7/8" 0.312" 1.19"
1366X8 B1366X8 1/2" 3/8" 7/8" 0.406" 1.28"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
