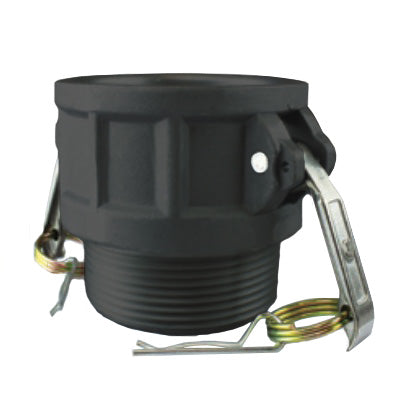

B050P by Jason Industrial | Part B | Cam & Groove Adapter | 1/2" Female Coupler x 1/2" Male NPT | Black SCH. 80 Polypropylene
Buy more, save moreDiscounts applied in cart/checkout.
Adapters
Jason Industrial | Cam & Groove (Camlock)
Adapter
Part B | Female Coupler x Male NPT
1
What is this product used for?
- Cam & Groove fittings, also known as camlock fittings, provide a fast, secure way to connect and disconnect hoses and pipes without tools. They are commonly used for transferring water, petroleum products, chemicals, agricultural liquids, dry bulk materials, and other industrial fluids where quick connections are needed.
2
What are the main product features?
- Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326D. They will interchange with any coupling manufactured to the same standard.
- The 1/2" size is not specified to any Mil spec.
3
What are the Material Specs?
- Black Schedule 80 glass reinforced polypropylene body.
- 304 Type stainless steel handles, safety pins and rings.
- Gaskets are EPDM.
4
Which sizes or configurations are available?
⚠ CAUTION: Plastic coupling pressures are based on ambient temperature (+70°F or +21°C) with standard NBR gasket.
Additional Product Data:
Shape:
Straight
Cam & Groove Type:
Type B
Ends Configuration:
Material(s):
Seal Material(s):
