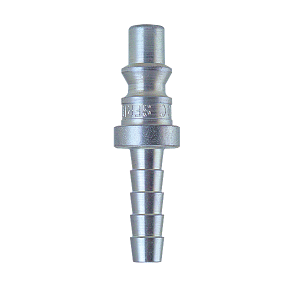

B-O2S2-S Breco by Foster | O Series | Quick Disconnect | 1/4" ARO Interchange Plug x 1/4" Hose Stem | Steel

B-O2S2-S Breco by Foster | O Series | Quick Disconnect | 1/4" ARO Interchange Plug x 1/4" Hose Stem | Steel

Minimum Order Quantity: 5 Units

Sale price$8.14

Foster Quick Disconnects - 210 & O Series 1/4" Plugs - Breco
Buy More, Save More!
Quantity Price Each
20–39 $7.65
40–79 $6.92
80+ $6.11
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • O Series
Shape:

Straight
Interchange:
  • Interchange with ARO 210 Series
Features:
  • Foster 210 Series couplings are manual to connect designs and interchange with 1/4" body size ARO 210 series plugs.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSI
  • Temperature Range (Buna seal): -40 deg. to +250 deg. F
  • Locking Device: Stainless Steel pins
  • Operation: Manual - Socket sleeve must be retracted to connect and disconnect Automatic - Push to Connect
Female CouplerPart Number Brand Male PlugPart Number I.D. Size Description
210M-3603 Foster 210-16 1/4" Brass/Steel
210M-3603NP Foster - 1/4" Brass/Steel Nickel Plated sleeve
210M-3603S/S Foster - 1/4" 303 Stainless Steel
210M-3653 Foster 210-165 5/16" Brass/Steel
210M-3653S/S Foster - 5/16" 303 Stainless Steel
210M-3703 Foster 210-17 3/8" Brass/Steel
B-2OS3-B Breco B-O2S3-S 3/8" Brass
210M-3703S/S Foster - 3/8" 303 Stainless Steel
Requires Hose Clamp

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
