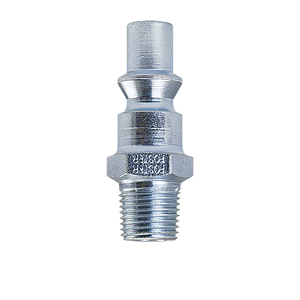

B-O2M2-S Breco by Foster | O Series | Quick Disconnect | 1/4" ARO Interchange Plug x 1/4" Male NPT Thread | Steel

B-O2M2-S Breco by Foster | O Series | Quick Disconnect | 1/4" ARO Interchange Plug x 1/4" Male NPT Thread | Steel

Minimum Order Quantity: 5 Units

Sale price$2.08

Foster Quick Disconnects - 210 & O Series 1/4" Plugs - Breco

Product Data:

Brand:
  • Breco
Series:
  • O Series
Shape:

Straight
Interchange:
  • Interchange with ARO 210 Series
Features:
  • Foster 210 Series couplings are manual to connect designs and interchange with 1/4" body size ARO 210 series plugs.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSI
  • Temperature Range (Buna seal): -40 deg. to +250 deg. F
  • Locking Device: Stainless Steel pins
  • Operation: Manual - Socket sleeve must be retracted to connect and disconnect Automatic - Push to Connect
Male PlugPart Number Brand Female CouplerPart Number MPT Size Description
210-12 Foster 210-2903 210M-2903 1/8" Steel
B-O2M1-S Breco - 1/8" Steel
210-10 Foster 210-3103 210M-3103 1/4" Steel
B-O2M2-S Breco B-O2M2-S B-2OM2-B 1/4" Steel
210-10S/S Foster 210-3103S/S 210M-3103S/S 1/4" 303 Stainless Steel
B-O2M3-S Breco B-2OM3-B 3/8" Steel

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
