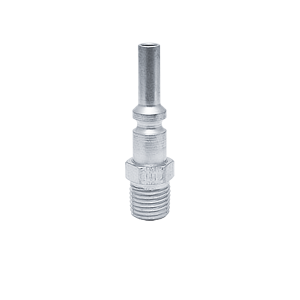

B-L2M2-S Breco by Foster | L Series | Quick Disconnect Socket & Plug | 1/4" Plug x 1/4" Male NPT Thread | Steel

B-L2M2-S Breco by Foster | L Series | Quick Disconnect Socket & Plug | 1/4" Plug x 1/4" Male NPT Thread | Steel

Minimum Order Quantity: 5 Units

Sale price$6.27

Foster Quick Disconnects - LN & L 1/4" Plugs - Breco

Product Data:

Brand:
  • Breco
Series:
  • L Series
Shape:

Straight
Interchange:
  • Foster LN Series couplings are interchangeable with Lincoln's "Long Nose" series couplings and offer quick coupling of all air-operated equipment. They are only available in 1/4" body size, brass and steel construction.
Features:
  • Locking mechanism prevents accidental coupler detachment.
  • Increased air flow due to a larger air passage.
  • Automatic air check valve shuts off air instantly when uncoupled, providing leak-proof seal.
  • Corrosion resistant steel for long service life.
  • Free swivel helps prevent kinking or curling of air hoses.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Temperature Range (std seals): -40 deg. F to +250 deg. F.
  • Locking Device: Balls or pins
Operation:
  • Manual - Socket sleeve must be retracted to connect and disconnect
  • Automatic - Push to Connect
Female CouplerPart Number Brand Male PlugPart Number Size Description
LN2903 Foster LN12 1/8" Brass/Steel
LN3103 Foster LN10 1/4" Brass/Steel
B-2LM2-B Foster B-L2M2-S 1/4" Brass
LN3303 Foster - 3/8" Brass/Steel

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
