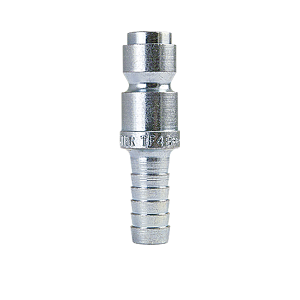

B-J2S2-S Breco by Foster | J Series | Quick Disconnect | 1/4" Tru-Flate Interchange Plug x 1/4" Hose Barb | Steel

B-J2S2-S Breco by Foster | J Series | Quick Disconnect | 1/4" Tru-Flate Interchange Plug x 1/4" Hose Barb | Steel

Sale price$9.28

Foster Quick Disconnects - TF & J Series 1/4" Plugs - Breco
Buy More, Save More!
Quantity Price Each
10–39 $8.72
40–79 $7.89
80+ $6.96
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • J Series
Shape:

Straight
1/4" - TF & J Series (Interchange with Tru-Flate Series)
TF Series Couplers connect up to 300 psig using Tru-Flate (automotive interchange) design. These manual sleeve, single shut-off couplings feature a steel tubular valve for high airflow and low pressure drop. Available in multiple sizes and materials for use with air or fluid systems.
Type: One Way Shut-Off
Rated Pressure: 300 PSIG
Operation: Automatic – Push to connect, retract socket sleeve to disconnect
Sizes: 1/4", 3/8" (For 1/2", use Industrial Interchange product)
Features:
  • Developed for the automotive industry
  • High flow valves with minimal pressure drop
  • Integral sleeve guard prevents accidental disconnect
  • Grip-ring sleeve with larger knurled diameter for glove-friendly operation
 Applications:
  • Air compressors, Pneumatic tools
  • Grease guns, Paint applicators
Part Number Socket I.D. Description
B-2JS3-B 1/4" 3/8" Brass
B-3JS3-S 3/8" 3/8" Steel
Part Number Plug I.D. Description
B-J2S2-S 1/4" 1/4" Brass

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
