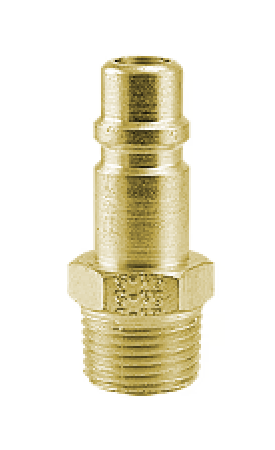

B-B4M4-B Breco by Foster | One Way Shut-Off | B Series | 1/2" Plug x 1/2" Male NPT Thread | Brass

B-B4M4-B Breco by Foster | One Way Shut-Off | B Series | 1/2" Plug x 1/2" Male NPT Thread | Brass

Sale price$14.23

Foster Quick Disconnects - 3 Series 1/4" Plugs - Breco
Buy More, Save More!
Quantity Price Each
10–39 $13.38
40–79 $12.10
80+ $10.67
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • B Series
Shape:

Straight
Features:
  • High flow metal valves.
  • Precision molded seals form a "bubble tight" seal for reliable operation within rated working pressures. Nitrile (Buna-N) seals are standard. EPDM, Viton and Neoprene seals are available as options.
  • Proven ball locking mechanism with large numbers of stainless steel locking balls evenly distribute the load to resist wear and provide positive connections and allow a swiveling action to reduce hose torque.
  • Integral sleeve guard protects the sleeve and resists accidental disconnects for the "SG" series.
  • Knurling and/or grooves on the sleeve provide a gripping surface for ease of operation.
  • Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
  • Accepts Industrial Interchange Plug.
  • Operation: Sleeve type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug.
  • Working Pressure: 300 PSIG; vacuum to 26" Hg
  • Interchangeability: Complies with ANSI/NFPA T3.20.14-1990 & IS0 6150-B
Specifications Body Size
1/4" 3/8" 1/2"
Rated Pressure (psi) 300 300 300
Temp. Range (Buna-N Seal) -40 deg. to +250 deg. F
Locking Device Stainless Steel Balls
Vacuum Data (inches Hg)
-- Disconnected (coupler only) Not Recommended
-- Connected 27.4 27.4 27.4
Approximate CFM at 100 (psi) 37 70 150
Male Plug Part Number Brand Female Coupler Part Number Size Description
50-5 Foster 4905 FM4905 1/4" Steel
B-B4M2-S Breco B-4BM2-B 1/4" Steel
52-5 Foster 5105 FM5105 SV5105 3/8" Steel
B-B4M3-S Breco B-4BM3-B 3/8" Steel
52-5B Foster - 3/8" Brass
54-5GB Foster - 1/2" Ball Check, Brass
54-5 Foster 5305 FM5305 SV5305 54-5CA SV5305CA 1/2" Steel
B-B4M4-S Breco - 1/2" Steel
54-5G Foster 5305 FM5305 SV5305 54-5CA SV5305CA 1/2" Ball Check, Brass
54-5B Foster - 1/2" Brass
B-B4M4-B Breco B-4BM4-B B-4BM4-B-SL 1/2" Brass
54-5S/S Foster - 1/2" 303 Stainless Steel
56-5 Foster 5505 FM5505 SV5505 SV5505CA 3/4" Steel
B-B4M6-S Breco B-4BM6-B 3/4" Steel
56-5S/S Foster - 3/4" 303 Stainless Steel

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
