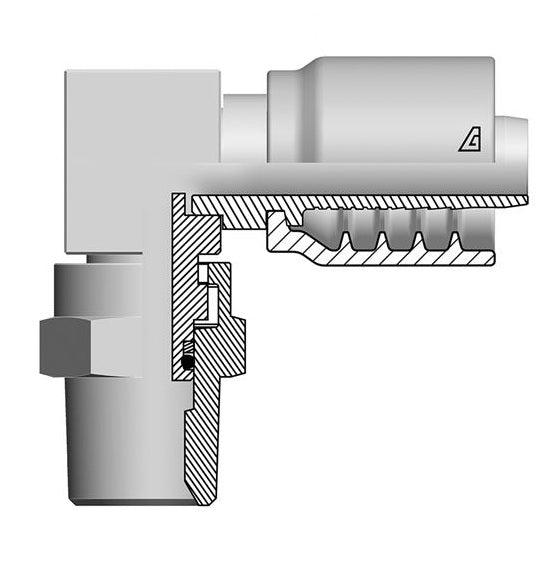

B-1616-MPS9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -16 Hose ID x -16 Male NPTF 60° Seat Swivel | Steel

B-1616-MPS9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -16 Hose ID x -16 Male NPTF 60° Seat Swivel | Steel

Sale price$70.24

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Male NPTF 60° Seat Swivel
Buy More, Save More!
Quantity Price Each
10–39 $66.03
40–79 $59.70
80+ $52.68
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

Straight
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 DDrop CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-MPS9 04 1/4" 6.4mm 04 1/4-18 17mm 39mm 17mm 0.28 lbs
B-0406-MPS9 04 1/4" 6.4mm 06 3/8-18 19mm 39mm 22mm 0.34 lbs
B-0604-MPS9 06 3/8" 9.5mm 04 1/4-18 17mm 41mm 17mm 0.40 lbs
B-0606-MPS9 06 3/8" 9.5mm 06 3/8-18 20mm 41mm 22mm 0.50 lbs
B-0608-MPS9 06 3/8" 9.5mm 08 1/2-14 22mm 41mm 25mm 0.59 lbs
B-0808-MPS9 08 1/2" 12.7mm 08 1/2-14 22mm 48mm 25mm 0.81 lbs
B-1212-MPS9 12 3/4" 19.0mm 12 3/4-14 27mm 61mm 32mm 0.90 lbs
B-1616-MPS9 16 1" 25.4mm 16 1-11-1/2 35mm 70mm 41mm 1.01 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
