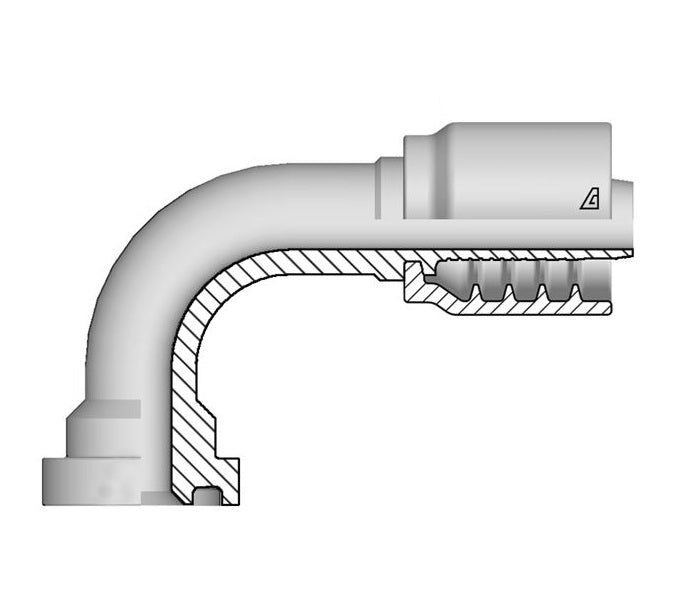

B-1012-C629 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -10 Hose ID x -12 Code 62 Flange | Steel

B-1012-C629 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -10 Hose ID x -12 Code 62 Flange | Steel

Sale price$66.30

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | Hose Barb x Code 62 Flange
Buy More, Save More!
Quantity Price Each
10–39 $62.32
40–79 $56.36
80+ $49.73
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

90 Degree
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
  • 6000 PSI
Material:
  • Steel
Part Number Hose ID Size Flange Q C
Cut-Off Factor		 D
Drop		 Weight
DashSize (in.) (mm) DashSize (in) (mm) (mm) (mm) lbs/each
B-0808-C629 08 1/2" 12.7mm 08 1/2" 31.8mm 47.8mm 46mm 0.43 lbs
B-0812-C629 08 1/2" 12.7mm 12 3/4" 41.3mm 47.8mm 54mm 0.67 lbs
B-1012-C629 10 5/8" 15.9mm 12 3/4" 41.3mm 49.9mm 55mm 0.67 lbs
B-1212-C629 12 3/4" 19.0mm 12 3/4" 41.3mm 63.2mm 61mm 0.92 lbs
B-1216-C629 12 3/4" 19.0mm 16 1" 47.6mm 63.2mm 66mm 1.09 lbs
B-1616-C629 16 1" 25.4mm 16 1 47.6mm 73.6mm 75mm 1.36 lbs
B-1620-C629 16 1" 25.4mm 20 1-1/4 54.0mm 77.6mm 78mm 1.60 lbs
