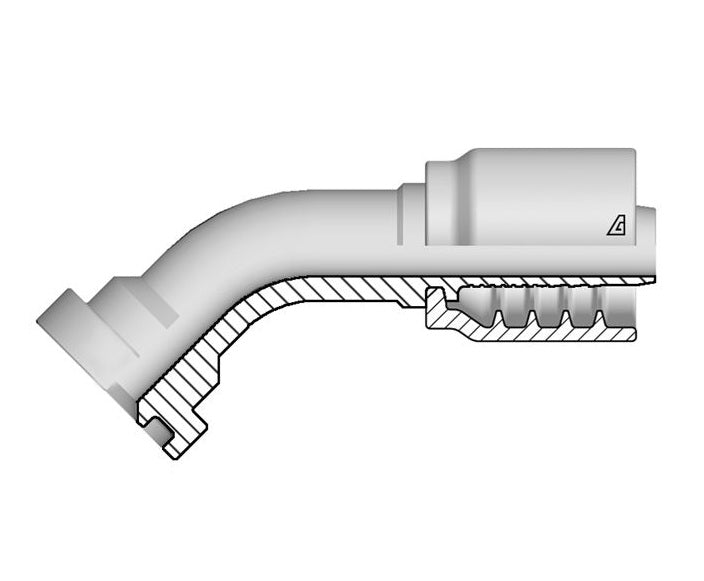

B-0808-C624 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | -08 Hose ID x -08 Code 62 Flange | Steel

B-0808-C624 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | -08 Hose ID x -08 Code 62 Flange | Steel

Sale price$44.86

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | Hose Barb x Code 62 Flange
Buy More, Save More!
Quantity Price Each
10–39 $42.17
40–79 $38.13
80+ $33.65
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

45 Degree
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
  • 6000 PSI
Material:
  • Steel
Part Number Hose ID Size Flange Q C
Cut-Off Factor		 D
Drop		 Weight
DashSize (in.) (mm) DashSize (in) (mm) (mm) (mm) lbs/each
B-0808-C624 08 1/2" 12.7mm 08 1/2" 31.8mm 46.6mm 23.0mm 0.39 lbs
B-0812-C624 08 1/2" 12.7mm 12 3/4" 41.3mm 67.2mm 30.5mm 0.67 lbs
B-1212-C624 12 3/4" 19.0mm 12 3/4" 41.3mm 71.4mm 31.0mm 0.85 lbs
B-1216-C624 12 3/4" 19.0mm 16 1" 47.6mm 65.2mm 33.5mm 1.00 lbs
B-1616-C624 16 1" 25.4mm 16 1" 47.6mm 81.9mm 36.0mm 1.23 lbs
B-1620-C624 16 1" 25.4mm 20 1-1/4" 54.0mm 78.4mm 39.0mm 1.47 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
