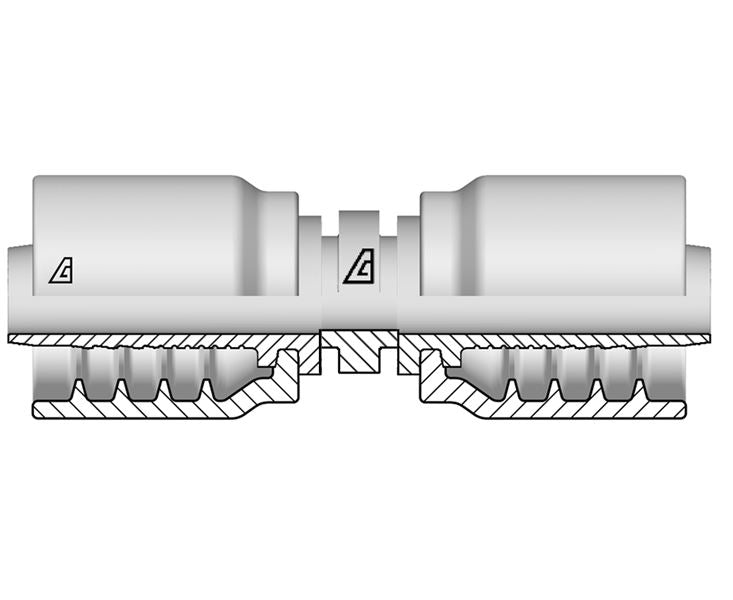

B-0505-HMEN Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Mender | -05 Hose ID x -05 Hose ID | Steel

B-0505-HMEN Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Mender | -05 Hose ID x -05 Hose ID | Steel

Sale price$20.24

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Mender | Hose Barb x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $19.03
40–79 $17.20
80+ $15.18
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • B Series
Shape:

Straight
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Dash Size Hose ID Size Weight
(in.) (mm)
B-0404-HMEN 04 1/4" 6.4mm 0.13 lbs
B-0505-HMEN 05 5/16" 7.9mm 0.15 lbs
B-0606-HMEN 06 3/8" 9.5mm 0.18 lbs
B-0808-HMEN 08 1/2" 12.7mm 0.25 lbs
B-1010-HMEN 10 5/8" 15.9mm 0.32 lbs
B-1212-HMEN 12 3/4" 19.0mm 0.56 lbs
B-1616-HMEN 16 1" 25.4mm 1.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
